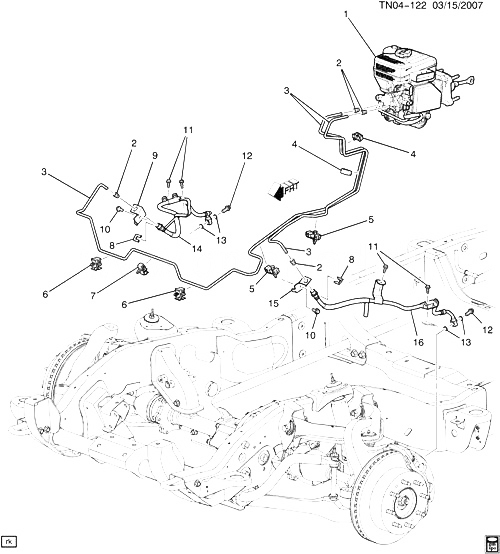

(TN04-122) - 2008-2009 N2 ПЕРЕДНИЕ ТОРМОЗНЫЕ ТРУБКИ HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (SEE GROUP 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) 2008-2009
002 11518522 NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (FRT BRK FRT PIPE) 2008-2009 04
003 88936298 PIPE, BRK (STEEL) (1/4 X 16 FT ROLL) (BRK) 2008-2009 AR
004 11570545 CLIP, FRT BRK FRT PIPE N257 (JH6) 2008-2009 02
005 11561434 CLIP, FRT BRK FRT PIPE (59.4X20.0X36.0) (HOLDS TWO 6.65 DIA TUBES AND ONE 10 DIA TUBE, NYLON 6/6-BLACK) N257 (JH6) 2008-2009 02
006 11561422 CLIP, FRT BRK FRT PIPE (FITS INTO DIA 8 HOLE) N257 (JH6) 2008-2009 02
007 11561421 CLIP, FRT BRK FRT PIPE (FITS INTO DIA 6 HOLE) N257 (JH6) 2008-2009 01
008 RETAINER, FRT BRK HOSE (PART OF 14, 16) 2008-2009
009 BRACKET, FRT BRK HOSE (PART OF 14) 2008-2009
010 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082) 2008-2009 02
011 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (FRT BRK HOSE) 2008-2009 04
012 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (PART OF 14, 16) 2008-2009 AR
013 21012386 WASHER, FRT BRK HOSE (PART OF 14, 16) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) N2 (JH6) 2008-2009 04
014 15921148 HOSE, FRT BRK (INCLS 8, 9, 12, 13) (ACDelco #176-1513) N2 (JH6) 2008-2009 01
015 BRACKET, FRT BRK HOSE (PART OF 16) 2008-2009
016 15921147 HOSE, FRT BRK (INCLS 8, 12, 13, 15) (ACDelco #15921147) N2 (JH6) 2008-2009 01
