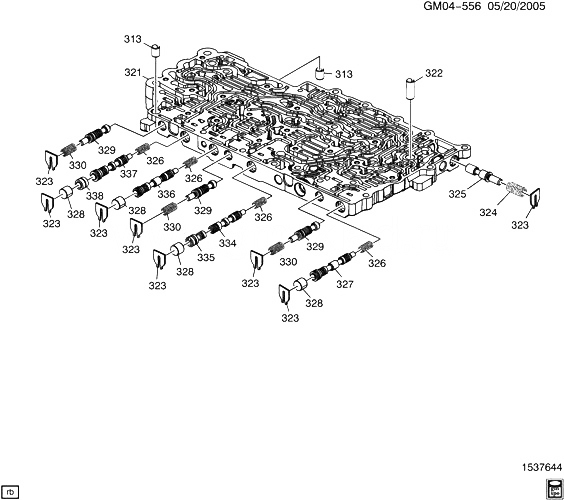

(GM04-556) - 2008-2009 N2 АВТОМАТИЧЕСКАЯ ТРАНСМИССИЯ, АКПП (MYC) (6L80) UPPER КЛАПАН УПРАВЛЕНИЯ BODY ASSEMBLY HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
313 24224766 PIN, C/VLV BODY LOC (DIA.=10MM L=12.7) N2 (MYC) 2008-2009 03
321 24231442 BODY, C/VLV UPR (INCLS 324-327, 329, 330, 334-338) (MUST USE T/W 24236934/PLATE KIT - CONT SOL VLV FLTR) N2 (MYC) 2008-2009 01
322 24230200 PIN, C/VLV BODY LOC (DIA.=10MM L=29.9) N2 (MYC) 2008-2009 01
323 24224755 RETAINER, 1-2-3-4 CLU BOOST VLV SPR N2 (MYC) 2008-2009 01
323 24224755 RETAINER, 1-2-3-4 CLU REG VLV BORE PLUG N2 (MYC) 2008-2009 01
323 24224755 RETAINER, 1/REV BAND ; 4-5-6 CLU REG VLV BORE PLUG N2 (MYC) 2008-2009 01
323 24224755 RETAINER, 2-6 CLU REG VLV BORE PLUG N2 (MYC) 2008-2009 01
323 24224755 RETAINER, 3-5-REV CLU BOOST VLV SPR N2 (MYC) 2008-2009 01
323 24224755 RETAINER, 3-5-REV CLU REG VLV BORE PLUG N2 (MYC) 2008-2009 01
323 24224755 RETAINER, 4-5-6 CLU BOOST VLV SPR N2 (MYC) 2008-2009 01
323 24224755 RETAINER, ACTR FEED LIM VLV N2 (MYC) 2008-2009 01
324 SPRING, ACTR FEED LIM VLV (PART OF 321) 2008-2009
325 VALVE, ACTR FEED LIM (PART OF 321) 2008-2009
326 SPRING, 1-2-3-4 CLU REG VLV (PART OF 321) 2008-2009
326 SPRING, 1/REV BAND ; 4-5-6 CLU REG VLV (PART OF 321) 2008-2009
326 SPRING, 2-6 CLU REG VLV (PART OF 321) 2008-2009
326 SPRING, 3-5 REV CLU REG VLV (PART OF 321) 2008-2009
327 VALVE, 1/REV BAND ; 4-5-6 CLU REG (PART OF 321) 2008-2009
328 24242814 PLUG, 1-2-3-4 CLU REG VLV BORE (9.5 THK, 11.5 DIA) N2 (MYC) 2008-2009 01
328 24242814 PLUG, 1/REV BAND ; 4-5-6 CLU REG VLV BORE (9.5 THK, 11.5 DIA) N2 (MYC) 2008-2009 01
328 24242814 PLUG, 2-6 CLU REG VLV BORE (9.5 THK, 11.5 DIA) N2 (MYC) 2008-2009 01
328 24242814 PLUG, 3-5 REV CLU REG VLV BORE (9.5 THK, 11.5 DIA) N2 (MYC) 2008-2009 01
329 VALVE, 1-2-3-4 CLU BOOST (PART OF 321) 2008-2009
329 VALVE, 3-5-REV CLU BOOST (PART OF 321) 2008-2009
329 VALVE, 4-5-6 CLU BOOST (PART OF 321) 2008-2009
330 SPRING, 1-2-3-4 CLU BOOST VLV (PART OF 321) 2008-2009
330 SPRING, 3-5-REV CLU BOOST VLV (PART OF 321) 2008-2009
330 SPRING, 4-5-6 CLU BOOST VLV (PART OF 321) 2008-2009
334 VALVE, 2-6 CLU REG (PART OF 321) 2008-2009
335 VALVE, 2-6 CLU REG VLV GAIN (PART OF 321) 2008-2009
336 VALVE, 3-5 REV CLU REG (PART OF 321) 2008-2009
337 VALVE, 1-2-3-4 CLU REG (PART OF 321) 2008-2009
338 VALVE, DEFAULT OVERRIDE 1-2-3-4 CLU (PART OF 321) 2008-2009
