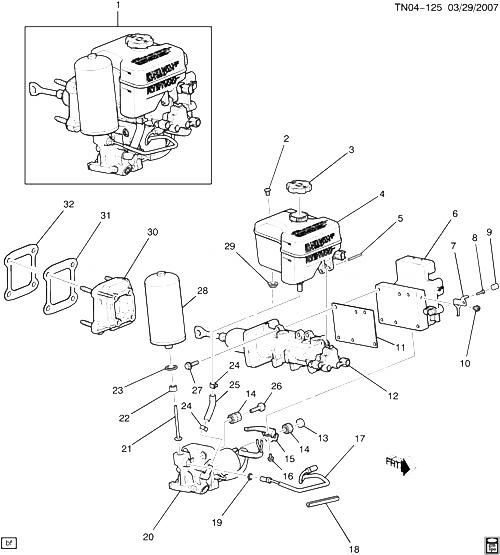

(TN04-125) - 2008-2009 N1 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР BOOSTER HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19178800 CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (PRIOR TO VIN-8H105997) (FOR 2ND DES SEE 25928351) N2 (JL4) (1ST DES) 2008-2008 01
001 25928351 CYLINDER, BRK MAS (W/ P/B BOOS ; CHAS CONT MDL) (VIN-8H105997 AND AFTER) (FOR 1ST DES SEE 19178800) N2 (JL4) (2ND DES) 2008-2008 01
002 11561105 БОЛТ, BRK M/CYL RSVR N2 (JL4) 2008-2009 01
003 22688449 CAP, BRK M/CYL RSVR N2 (JL4) 2008-2008 01
004 25826177 RESERVOIR KIT, BRK M/CYL (INCLS 5, 18, 19, 29, 31) N2 (JL4) 2008-2009 01
005 11561104 PIN, BRK M/CYL RSVR (PART OF 4, 6, 25) (*KIT1, KIT2, KIT3) N2 (JL4) 2008-2009 01
006 25928347 MODULE KIT, ELEK BRK CONT (W/BRK PRESS MOD VLV) (INCLS 5, 8, 9, 11, 13, 18, 27, 31) (VIN-8H105997 AND AFTER) (FOR 1ST DES SEE 19178799) N2 (JL4) (2ND DES) 2008-2008 01
007 BRACKET, BRK M/CYL (*KIT2) 2008-2009
008 БОЛТ, ELEK BRK ; TRACT CONT MDL (PART OF 6) (*KIT1, KIT2, KIT3) 2008-2009
009 PLUG, ELEK BRK CONT WRG HARN HOLE (PART OF 6, 20) (*KIT2, KIT3) 2008-2009
010 БОЛТ, P/B BOOS PUMP (*KIT2) 2008-2009
011 GASKET, ELEK BRK ; TRACT CONT MDL (PART OF 6) (*KIT1, KIT3) 2008-2009
012 CYLINDER, BRK MAS (*KIT3) 2008-2009
013 RETAINER, P/B BOOS PUMP DPNR (PART OF 6, 20) (*KIT1, KIT2, KIT3) 2008-2009
014 DAMPENER, P/B BOOS PUMP (PART OF 20) (*KIT2) 2008-2009
015 BRACKET, P/B BOOS PUMP (*KIT2) 2008-2009
016 БОЛТ, P/B BOOS PUMP (*KIT2) 2008-2009
017 25826183 PIPE KIT, P/B BOOS OTLT FRT (INCLS 31) N2 (JL4) 2008-2009 01
018 25816556 RETAINER, P/B BOOS PIPE EL (PART OF 4, 6, 20, 25) (*KIT1, KIT2, KIT3) N2 (JL4) 2008-2009 01
019 25816552 SEAL, P/B BOOS INL PIPE (O RING) (PART OF 4, 25) N2 (JL4) 2008-2009 01
020 25826181 PUMP KIT, P/B BOOS (INCLS 9, 13, 14, 18, 23, 26, 31) N2 (JL4) 2008-2009 01
021 FITTING, P/B BOOS PUMP FLUID ACCUM (PART OF 28) 2008-2009
022 SPRING, P/B BOOS PUMP FLUID ACCUM FTG (PART OF 28) 2008-2009
023 10386686 SEAL, P/B BOOS PUMP FLUID ACCUM (O RING) (PART OF 20, 28) N2 (JL4) 2008-2009 01
024 CLAMP, P/B BOOS PUMP INL HOSE 2008-2009
025 25826184 HOSE KIT, P/B BOOS INL (INCLS 5, 18, 19, 31, 32) N2 (JL4) 2008-2009 01
026 RETAINER, P/B BOOS PUMP DPNR (PART OF 20) (*KIT2) 2008-2009
027 БОЛТ, ELEK BRK ; TRACT CONT MDL (PART OF 6) (*KIT1, KIT2) 2008-2009
028 25826182 ACCUMULATOR KIT, P/B BOOS PUMP FLUID (INCLS 21-23, 31) N2 (JL4) 2008-2009 01
029 10386664 GROMMET, BRK M/CYL RSVR (PART OF 4) (MASTER CYLINDER FEED) N2 (JL4) 2008-2009 02
030 SPACER, BRK M/CYL SPCR 2008-2009
031 25821319 GASKET, BRK M/CYL SPCR (PART OF 4, 6, 17, 20, 25, 28) (*KIT1, KIT2, KIT3) N2 (JL4) 2008-2009 01
032 25821318 GASKET, BRK M/CYL ADAP (PART OF 25) (*KIT2, KIT3) N2 (JL4) 2008-2009 01
K01 25826149 GASKET KIT, ELEK BRK ; TRACT CONT MDL (INCLS 5, 8, 11, 13, 18, 27, 31) N2 (JL4) 2008-2009 01
K02 25826185 PARTS KIT, BRK MAS CYL (W/ P/B BOOS ; CHAS CONT MDL) (INCLS 5, 7-10, 13-16, 18, 26, 27, 31, 32) N2 (JL4) 2008-2009 01
K03 25826147 CYLINDER KIT, BRK MAS (INCLS 5, 8, 9, 11-13, 18, 31, 32) N2 (JL4) 2008-2009 01
