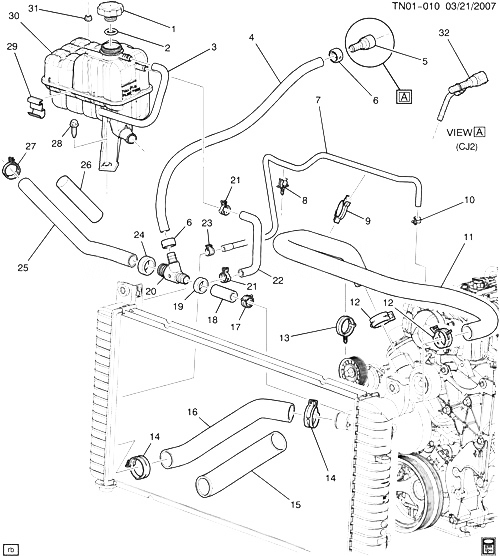

(TN01-010) - 2008 N2 ШЛАНГИ РАДИАТОРА (L92/6.2-8) HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15075118 CAP, RAD SURGE TK (INCLS 2) (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98) N2 2008-2009 01
002 SEAL, COOL RCVY RSVR (O RING) (PART OF 1) 2008-2008
003 HOSE, SURGE TK OVFL (PART OF 30) 2008-2008
004 19130370 HOSE, RAD SURGE TK OTLT (PART OF 25) N2 (36) 2008-2009 01
004 19130372 HOSE, RAD SURGE TK OTLT (PART OF 25) N2 (06) 2008-2009 01
005 CONNECTOR, HTR OTLT HOSE (PART OF 25) 2 (06) 2008-2009
005 15032062 CONNECTOR, HTR OTLT HOSE (PART OF 25) (NATURAL) (74.93MM LONG) (QUICK CONNECT ASM) N2 (36) 2008-2009 01
006 STRAP, RAD SURGE TK OTLT HOSE (PART OF 25) 2008-2008
007 19130369 HOSE, RAD VENT INL N2 2008-2009 01
008 15041309 CLIP, RAD VENT INL HOSE N2 2008-2009 01
009 CLIP, RAD INL HOSE (PART OF 11) 2008-2008
010 15734742 CLAMP, RAD SURGE TK ENG HOSE (13-16MM DIA RANGE) N2 2008-2009 01
011 19130367 HOSE, RAD INL (INCLS 9, 13) N2 (L92) 2008-2008 01
012 11518559 CLAMP, SPRINGBAND, 42MM NOMINAL DIA, 20 WIDTH, 6298M, 6164M (RAD INL HOSE) 2008-2009 02
013 CLIP, RAD INL HOSE (PART OF 11) 2008-2008
014 11562099 CLAMP, RAD OTLT HOSE (DIA 49MM, 20 WIDTH) (8.948) N2 (L92) 2008-2008 02
015 SLEEVE, RAD SURGE TK INL PIPE (PART OF 16) 2008-2008
016 19130368 HOSE, RAD OTLT (INCLS 15) N2 (L92) 2008-2008 01
017 11516225 CLAMP, 25MM DIA, 15MM WIDTH, 6298 MATL (RAD SURGE TK OTLT HOSE) 2008-2009 01
018 19130370 HOSE, RAD SURGE TK OTLT (PART OF 25) N2 (36) 2008-2009 01
018 19130372 HOSE, RAD SURGE TK OTLT (PART OF 25) N2 (06) 2008-2009 01
019 STRAP, HTR OTLT HOSE (PART OF 25) 2008-2008
020 TEE, RAD SURGE TK OTLT HOSE (PART OF 25) 2008-2008
021 CLAMP, RAD SURGE TK INL HOSE (PART OF 22) 2008-2008
022 15058001 HOSE, RAD SURGE TK INL (INCLS 21) N2 2008-2009 01
023 15004599 CLAMP, RAD SURGE TK ENG HOSE (BLACK) (15MM OD 17.2MM) N2 2008-2009 01
024 STRAP, RAD SURGE TK OTLT HOSE (PART OF 25) 2008-2008
025 19130370 HOSE, RAD SURGE TK OTLT (INCLS 4-6, 18-20, 24, 26) N2 (36) 2008-2009 01
025 19130372 HOSE, RAD SURGE TK OTLT (INCLS 4-6, 18-20, 24, 26) N2 (06) 2008-2009 01
026 SLEEVE, RAD SURGE TK OTLT HOSE (PART OF 25) 2008-2008
027 11562101 CLAMP, SPRING BAND, 35MM NOM (RAD SURGE TK OTLT HOSE) 2008-2009 01
028 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (RAD SURGE TK) 2008-2009 01
029 CLIP, RAD SURGE TK (PART OF 30) 2008-2008
030 15808715 TANK, RAD SURGE (INCLS 3, 29) (ACDelco #15808715) N2 2008-2009 01
031 11508388 ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (RAD SURGE TK) (8.915) 2008-2009 02
032 25896184 HOSE, AUX HTR OTLT FRT (SEE GROUP 09.000 HOSE ASM-AUX A/C EVPR ; AUX HTR FOR DETAILED ILLUSTRATED VIEW) N2 (06) (CJ2) 2008-2009 01
