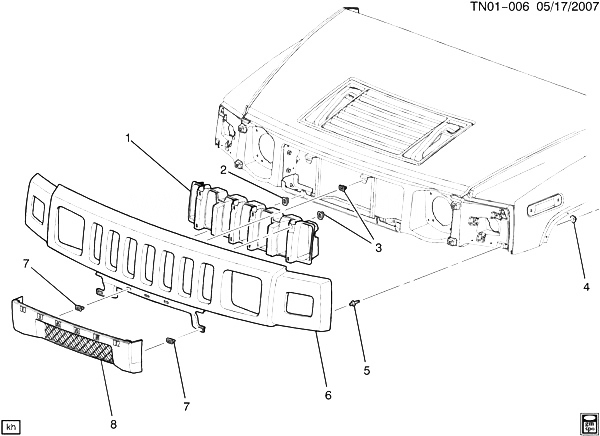

(TN01-006) - 2008-2009 N2 РЕШЕТКА РАДИАТОРА HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25886171 COVER, RAD GRL OPG (PART OF 6) N2 2008-2009 01
002 15078238 CLIP, RAD GRL (PART OF 6) (BLACK) (25X15.5) (ALSO REPLACES SILVER) N2 2008-2009 02
003 15162843 CLIP, RAD GRL UPR (PART OF 6) N2 2008-2009 02
004 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RAD GRL) 2008-2009 04
005 11588458 STUD, DBL END 6-LOBED W/COLLAR M6X1X28.8 GM6010M GM613M (PART OF 6) 2008-2009 04
006 25886172 GRILLE, RAD (INCLS 1-3, 5) N2 (EXC WS2) 2008-2009 01
006 25962362 GRILLE, RAD (INCLS 1-3, 5) (SILVER) N2 (WS2) 2008-2009 01
007 15078238 RETAINER, RAD GRL (LOWER GRILLE) (PART OF 8) (BLACK) (25X15.5) (ALSO REPLACES SILVER) N2 2008-2009 04
007 15078238 RETAINER, RAD GRL (PART OF 8) (BLACK) (25X15.5) (ALSO REPLACES SILVER) (1.269) (SERV CMP OF GUARD PKG 12498157) N2 2008-2009 04
008 15078155 GRILLE, RAD LWR (INCLS 7) (1.266) (SERV CMP OF GUARD PKG 12498157) N2 (EXC V20) 2008-2009 01
008 25833198 GRILLE, RAD LWR (INCLS 7) N257 (V20, V25, V3F) 2008-2009 01
008 25833199 GRILLE, RAD LWR (INCLS 7) N257 (EXC V20, V25, V3F) 2008-2009 01
