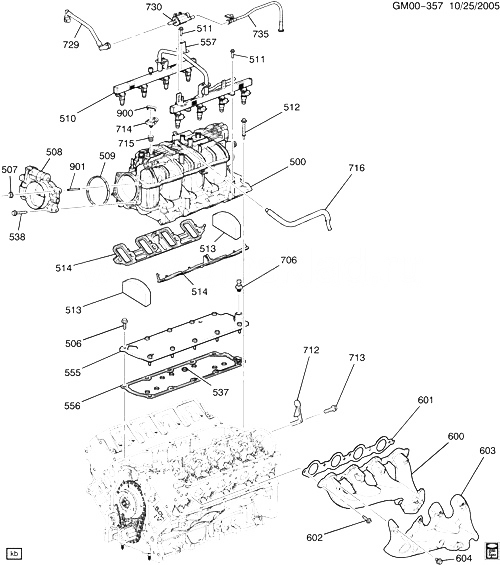

(GM00-357) - 2008 N2 ДВИГАТЕЛЬ В СБОРЕ-6.2L V8 PART 5 MANIFOLD FUEL RELATED PARTS (L92/6.2-8) HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
500 12580678 MANIFOLD, INT N2 (L92) 2008-2008 01
506 11518075 БОЛТ, HFH, THD 22, OD 17, 8.8, GMW14C-PT, HDR POINT (PART OF 555) 2008-2008 10
507 NUT, THROT BODY (*KIT1) 2008-2008
508 12580760 BODY, THROT (W/THROT ACTR) (ACDelco #217-2422) N2 (L92) 2008-2008 01
509 12589235 SEAL, THROT BODY (ACDelco #217-2424) N2 (L92) 2008-2008 01
510 INJECTOR, SEQ M/PORT FUEL (W/FUEL RL) (SEE GROUP 03.000 РАМА ТОПЛИВНОГО ИНЖЕКТОРА FOR DETAILED ILLUSTRATED VIEW) 2008-2008
511 12580910 БОЛТ, F/INJR DRVR MDL N2 (L92) 2008-2008 04
512 12575384 БОЛТ, INT MANIF N2 (L92) 2008-2008 10
513 INSULATOR, INT MANIF 2008-2008
514 89060434 GASKET, INT MANIF N2 (L92) 2008-2008 01
537 12574886 SEAL, ENG BLK VALLEY CVR HIGH PRESS PORT (PART OF 555) N2 (L92, MYC) 2008-2008 08
538 БОЛТ, THROT BODY (*KIT1) 2008-2008
555 12598832 COVER, ENG BLK VALLEY (W/PCV BFL) (INCLS 506, 537, 556) (INCLS COVER, BOLTS, GASKET, SEAL) N2 (L92) 2008-2008 01
556 12610141 GASKET, ENG BLK VALLEY CVR (PART OF 555) N2 (L92) 2008-2008 01
557 12593801 BRACKET, F/INJN FUEL RL N2 (L92) 2008-2008 01
600 12616285 MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS) N2 (L92) 2008-2008 01
600 12616286 MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS) N2 (L92) 2008-2008 01
601 12617944 GASKET, EXH MANIF N2 (L92) 2008-2008 02
602 11518860 БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF FLG) 2008-2008 12
603 12562243 SHIELD, EXH MANIF HT (PART OF 600) N2 (L92) 2008-2008 01
603 12562244 SHIELD, EXH MANIF HT (PART OF 600) N2 (L92) 2008-2008 01
604 10228350 БОЛТ, EXH MANIF H/SHLD (PART OF 600) (M6X1X6.5 HEX FLANGE) N2 (L92) 2008-2008 06
706 12616646 ДАТЧИК, ENG OIL PRESS (ACDelco #D1846A) N2 (L92) 2008-2008 01
712 12578463 STOP, F/INJN FUEL RL N2 (L92) 2008-2008 01
713 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (F/INJN FUEL RL STOP) 2008-2008 01
714 09359409 ДАТЧИК, MAP (INCLS SEAL) (INCLS 715) (ACDelco #9359409) N2 (L92) 2008-2008 01
715 16194007 SEAL, MAP SEN (PART OF 714) N2 (L92) 2008-2008 01
716 12607406 TUBE, PCV (FRESH AIR) N2 (L92) 2008-2008 01
716 12611592 TUBE, PCV (DIRTY AIR) N2 (L92) 2008-2008 01
729 12574897 HARNESS, EVAP EMIS CNSTR N2 (L92) 2008-2008 01
730 12606684 VALVE, EVAP EMIS CNSTR PURGE SOL (ACDelco #214-2142) N2 (L92) 2008-2008 02
735 12617169 TUBE, EVAP EMIS CNSTR PURGE N2 (L92) 2008-2008 01
900 12594132 RETAINER, MAP SEN N2 (L92) 2008-2008 01
900 12617897 RETAINER, MAP SEN N2 (L92, MYC) 2008-2008 01
901 STUD, THROT BODY (*KIT1) 2008-2008
K01 89017591 BOLT KIT, THROT BODY (INCLS 507, 538, 901) (INCLS BOLT, STUD, NUT) N2 (L92) 2008-2008 02
