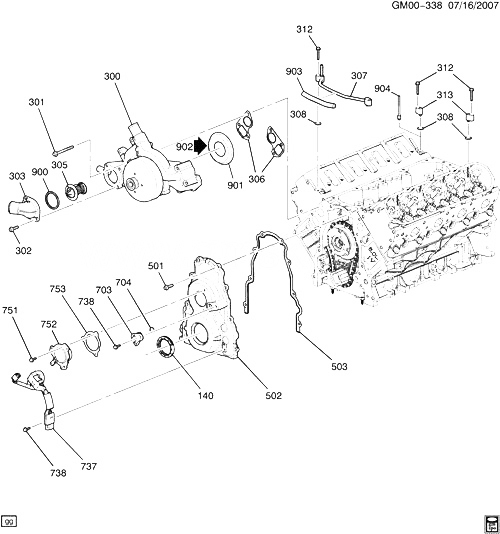

(GM00-338) - 2008 N2 ДВИГАТЕЛЬ В СБОРЕ-6.2L V8 PART 3 FRONT COVER COOLING (L92/6.2-8) HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
140 12585673 SEAL, CR/SHF FRT OIL (PART OF 502) (0.207) (ACDelco #296-02) N2 (L92) 2008-2008 01
301 12551926 БОЛТ, W/PMP (M8X1.25X83) N2 (L92) 2008-2008 06
302 11516480 БОЛТ, W/PMP INL (PART OF 300) (M6X1X25-10MM SOC) N2 (L92) 2008-2008 01
303 12587395 INLET, W/PMP (PART OF 300) (ACDelco #15-10595) N2 (L92) 2008-2008 01
305 89018168 THERMOSTAT KIT, ENG COOL (INCL SEAL) (PART OF 300) (INCLS 900) (ACDelco #131-160) N2 (L92) 2008-2008 01
306 12559271 GASKET, W/PMP (2 OBLONG ; 1 ROUND MTG HOLES, AT PUMP MANIFOLD) (ACDelco #12559271) N2 (L92) 2008-2008 02
307 12605716 PIPE, ENG COOL AIR BL (INCLS 308, 903) N2 (L92) 2008-2008 01
308 12602541 SEAL, ENG COOL AIR BL PIPE (O RING) (SINGLE TYPE ONE HOLE O-RING-SEAL) (PART OF 307, 313) N2 (L92) 2008-2008 02
312 11514008 БОЛТ, METRIC HEX FLG HD (M6X1X30) (POR 9.8) (ENG COOL AIR BL PIPE) (1.097) 2008-2008 04
313 12602540 COVER, ENG COOL AIR BL PIPE HOLE (INCLS 308) (INCL SEALS) N2 (L92) 2008-2008 02
501 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 502) 2008-2008 08
502 12616491 COVER, ENG FRT (INCLS 140, 501, 503, 703, 704, 737, 738, 751-753) N2 (L92) (INCLS COVER, SEAL, WIRE, JUMPER, BRACKET, GASKET, BOLT, SENSOR, MAGNET) 2008-2008 01
503 12574294 GASKET, ENG FRT CVR (PART OF 502) N2 (L92) 2008-2008 01
703 12591720 ДАТЧИК, CM/SHF POSN (PART OF 502) (INCLS 704) (ACDelco #213-3826) N2 (L92) 2008-2008 01
704 SEAL, CM/SHF POSN SENSOR (PART OF 502, 703) 2008-2008
737 WIRE, CM/SHF POSN SEN (PART OF 502) 2008-2008
738 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 502) 2008-2008 02
751 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PART OF 502) 2008-2008 03
752 12585995 MAGNET, CM/SHF POSN ACTR (PART OF 502) N2 (L92) 2008-2008 01
753 12594339 SEAL, CM/SHF POSN ACTR CVR (PART OF 502) N2 (L92) 2008-2008 01
900 12587397 SEAL, WAT INL (PART OF 305, 300) N2 (L92) 2008-2008 01
901 PLUG, W/PMP (PART OF 300) 2008-2008
902 89021297 ADHESIVE/SEALANT, THREADLOCKER HI STRENGTH 10ML ERI (PART OF 300) 2008-2008 AR
903 12600254 HOSE, ENG COOL AIR BL PIPE DPNG (PART OF 307) N2 (L92) 2008-2008 01
904 12602048 PLUG, ENG COOL AIR BL (55MM, ALUMINUM) N2 (L92) 2008-2008 02
