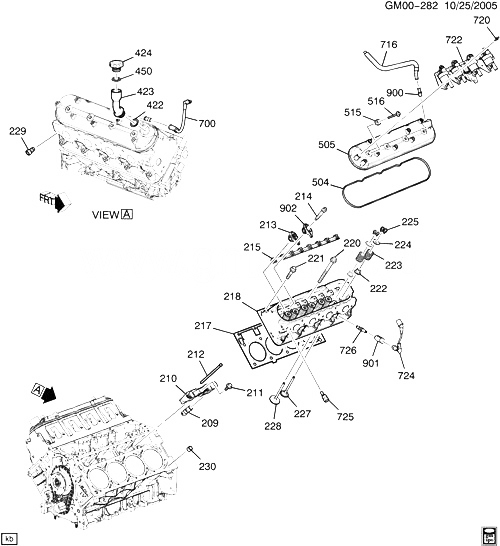

(GM00-282) - 2008 N2 ДВИГАТЕЛЬ В СБОРЕ-6.2L V8 PART 2 CYLINDER HEAD RELATED PARTS (L92/6.2-8) HUMMER - H2 SUV 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
209 17122490 LIFTER, VLV (HYD, ROLLER, NON-ACTIVE FUEL MANAGEMENT LIFTER) (ACDelco #HL124) N2 (L92) 2008-2008 16
210 12595365 GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES) N2 (L92, MYC) 2008-2008 01
211 12551163 БОЛТ, VLV LFTR GDE (M6X1.0X19) N2 (L92) 2008-2008 04
212 10238852 ROD, VLV PUSH N2 (L92) 2008-2008 16
213 10214664 ARM, VLV RKR (ARM, VLV RKR EXH. FOR INTKE VLV RKR ARM SEE PN 12569167, QTY 8) N2 (L92) 2008-2008 16
214 12560961 БОЛТ, VLV RKR ARM PIV SUPT (M8X1.25X52.5) N2 (L92) 2008-2008 16
215 12600936 SUPPORT, VLV RKR ARM PIV N2 (L92) 2008-2008 02
217 12610046 GASKET, CYL HD N2 (L92) 2008-2008 02
218 12615361 HEAD, CYL (PARTIAL) N2 (L92) 2008-2008 02
220 11571134 БОЛТ, CYL HD (M11X2X100) N2 (L92) 2008-2008 20
221 12558840 БОЛТ, CYL HD (M8X1.25X45) N2 (L92) 2008-2008 10
222 12482062 SEAL KIT, EXH VLV STEM OIL (22.8MM) (INCLS 8 SEALS) N2 (L92) 2008-2008 01
222 12482063 SEAL KIT, INT VLV STEM OIL (14.4MM) (INCLS 8 SEALS) N2 (L92) 2008-2008 01
223 12589774 SPRING, VLV N2 (L92) 2008-2008 16
224 10166344 CAP, VLV SPR N2 (L92) 2008-2008 16
225 10166345 KEY, VLV STEM N2 (L92) 2008-2008 32
227 12582719 VALVE, EXH (STD) N2 (L92) 2008-2008 08
228 12617533 VALVE, INT (12617533 IS OPTIONAL MAKE NTBP/FOR SERVICE SEE 12590771) N2 (L92) 2008-2008 08
229 11610259 PLUG, CYL HD CORE HOLE (M12X1.5X21.2) N257 (L92) 2008-2008 01
230 12570326 PIN, CYL HD LOC N2 (L92) 2008-2008 04
422 24100002 SEAL, OIL FIL TUBE (O RING) (27.94MM I.D.) (SIZE #320) N2 (L92) 2008-2008 01
423 12574386 TUBE, OIL FIL N2 (L92) 2008-2008 01
424 12573337 CAP, OIL FIL (SAE 5W30, NON-VENTED, SEAL) (INCLS 450) (ACDelco #FC208) N2 (L92) 2008-2008 01
450 24100002 SEAL, OIL FIL CAP (O RING) (PART OF 424) (27.94MM I.D.) (SIZE #320) (1.745) N2 (L92) 2008-2008 01
504 12612045 GASKET, VLV RKR ARM CVR (PART OF 505) N2 (L92) 2008-2008 02
505 12570427 COVER, VLV RKR ARM (INCLS 504, 515, 516, 900) (INCLS:COVER, GASKET, BOLT, DEFLECTOR, FITTING) N2 (L92) 2008-2008 01
505 12582224 COVER, VLV RKR ARM (INCLS 504, 515, 516, 900) (INCLS:COVER, GASKET, BOLT, DEFLECTOR, FITTING) N2 (L92) 2008-2008 01
515 GROMMET, BOLT VLV RKR ARM CVR (PART OF 505, 516) 2008-2008
516 12577215 БОЛТ, VLV RKR ARM CVR (INCLS 515) (PART OF 505) (M6.0X1.0) (W/GROMMET, SLEEVE) N2 (L92) 2008-2008 08
700 12607406 TUBE, PCV (FRESH AIR) N2 (L92) 2008-2008 01
716 12611592 TUBE, PCV (DIRTY AIR) N2 (L92) 2008-2008 01
720 12554211 STUD, IGN COIL BRKT (HFH, M6X1X18) (3.330) (ACDelco #12554211) N2 (L92) 2008-2008 10
722 COIL, IGN (SEE GROUP 02.000 COIL ; MODULE/IGNITION FOR DETAILED ILLUSTRATED VIEW) 2008-2008
724 89018057 WIRE, SPLG (INCLS 901) (*KIT1) (ACDelco #356F) N2 (L92) 2008-2008 08
725 12608814 ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (ACDelco #213-4333) N2 2008-2008 01
725 12608814 ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (1.150) (ACDelco #213-4333) N2 2008-2008 01
726 12609877 SPARK PLUG, (GAP 0.040) (ACDelco #41-985) (IRIDIUM) N2 (L92) 2008-2008 08
900 12567915 FITTING, PCV (PART OF 505) N2 (L92, MYC) 2008-2008 01
901 15336959 SHIELD, SPLG WIRE (PART OF 724) (ACDelco #8006) N2 (L92) 2008-2008 08
902 12569167 ARM, INT VLV RKR (OFFSET INLET ROCKER ARM) (ARM, VLV RKR INT. FOR EXHST VLV RKR ARM SEE PN 10214664, QTY=8) N2 (L92) 2008-2008 08
K01 89018058 WIRE KIT, SPLG (INCLS 724) (INCLS SET OF 8 LEADS) (ACDelco #748RR) N2 (L92) 2008-2008 01
