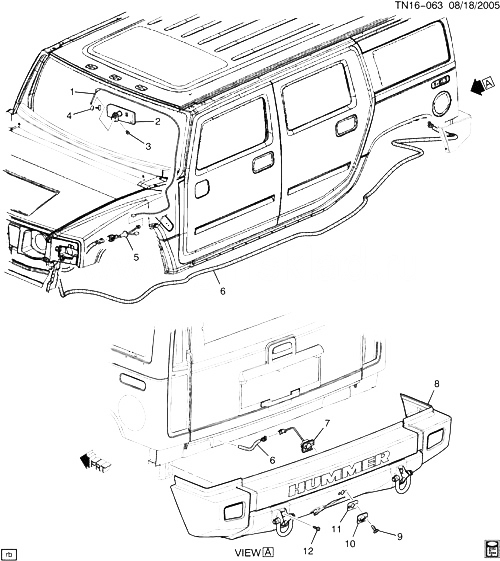

(TN16-063) - 2006-2007 N2 КАМЕРА ЗАДНЕГО ОБЗОРА (UVC) HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15296896 HARNESS, OFF ROAD LP WRG (ROOF LP JUMPER) N2 (DNS) 2007-2007 01
002 20824386 MIRROR, I/S RR VIEW (INCLS 3) N2 (DNS, UVC) 2006-2007 01
003 БОЛТ, I/S RR VIEW MIR (PART OF 2) 2006-2007
004 SUPPORT, W/S (PART OF WINDSHIELD, - 16.005) 2006-2007
005 15296883 HARNESS, DA WRG (THRU FRT OF DASH PNL) N2 (DNS) 2007-2007 01
006 15296898 HARNESS, E/GATE WRG (REAR VISION CAMERA TO ДВИГАТЕЛЬ COMPARTMENT) (9.715) (ACDelco #15296898) N2 (DNS) 2007-2007 01
007 25824429 CAMERA, RR VIEW (LABELED 25824429) N2 (DNS) 2006-2007 01
008 19178227 ПАНЕЛЬ, БАМПЕР ЗАДНИЙ IMP (BUMPER W/HOLES FOR RR VISION CAMERA) (W/RIVNUTS) (SEE GROUP 07.000 БАМПЕР ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) N2 (06) 2006-2007 01
009 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR VIEW CAMERA) 2 2006-2007 02
010 25824442 BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (INCLS 11) (LABELED 25824442 OR 15280055) N2 (DNS, UVC) 2006-2007 01
010 25824442 BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (INCLS 11) (LABELED 25824442 OR 15280055) N2 (DNS, UWG) 2007-2007 01
011 SEAL, RR VIEW CAMERA IMAGE DISPLAY MDL) (PART OF 10 2006-2007
012 11561764 BOLT - HEX W/FL WA, M12X1.75X65, 47.5 THD, 24 OD, 10.9, GMW4205 (RR BPR IMP BAR) 2006-2007 04
