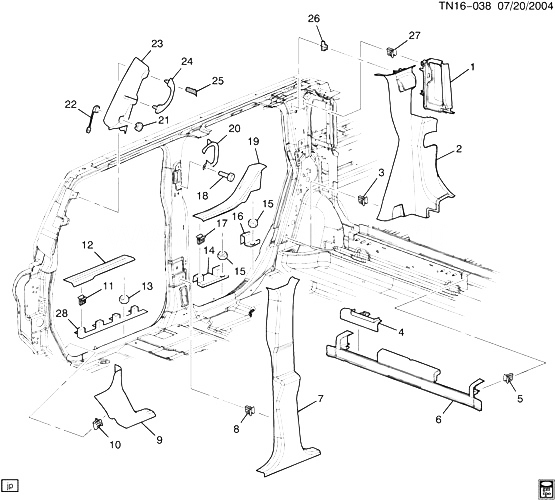

(TN16-038) - 2005-2007 N2(36) ОТДЕЛКА-ИНТЕРЬЕР-BODY SIDE HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10358712 MOLDING, BODY L/PLR GARN (INCLS 27) (EBONY) N2 (36) 2005-2007 01
001 10392654 MOLDING, BODY L/PLR GARN (INCLS 27) (EBONY) N2 (36) 2005-2007 01
002 15211984 MOLDING, C/PLR UPR GARN (INCLS 3, 26) (EBONY) N2 (36) 2006-2007 01
002 15211986 MOLDING, C/PLR UPR GARN (INCLS 3, 26) (EBONY) N2 (36) 2005-2007 01
003 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 2) 2005-2007 16
004 10358747 COVER, REMOVABLE M/GATE HGE FIN (EBONY) N2 (36) 2005-2007 01
004 10358749 COVER, REMOVABLE M/GATE HGE FIN (EBONY) N2 (36) 2005-2007 01
005 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 6) 2005-2007 08
006 10392681 MOLDING, E/GATE CTR (INCLS 5) (EBONY) N2 (36) 2005-2007 01
007 15233382 MOLDING, C/PLR GARN (INCLS 8) (EBONY) N2 2006-2007 01
007 15233384 MOLDING, C/PLR GARN (INCLS 8) (EBONY) N2 2006-2007 01
008 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 7) 2005-2007 08
009 10392646 PANEL, BODY H/PLR TR (INCLS 10) (EBONY) N2 2005-2007 01
009 15241327 PANEL, BODY H/PLR TR (INCLS 10) (EBONY) N2 2006-2007 01
010 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 9) 2005-2007 02
011 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 12) 2005-2007 08
012 10392640 PLATE, FRT S/D SILL TR (INCLS 11) (EBONY) N2 2005-2007 01
012 10392642 PLATE, FRT S/D SILL TR (INCLS 11) (EBONY) N2 2005-2007 01
013 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (FRT S/D SILL TR PLT BRKT) (8.921) 2005-2007 08
014 15076277 BRACKET, RR S/D SILL TR PLT (FRONT) N2 2006-2007 02
015 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (RR S/D SILL TR PLT BRKT) (8.921) 2005-2007 06
016 15076278 BRACKET, RR S/D SILL TR PLT (REAR) N2 2006-2007 02
017 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 19) 2005-2007 06
018 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (C/PLR ASST HDL) 2005-2007 04
019 10392636 PLATE, RR S/D SILL TR (INCLS 17) (EBONY) N2 2005-2007 01
019 10392638 PLATE, RR S/D SILL TR (INCLS 17) (EBONY) N2 2005-2007 01
020 21998342 HANDLE, C/PLR ASST (EBONY) N2 2005-2007 01
020 21998343 HANDLE, C/PLR ASST (EBONY) N2 2005-2007 01
021 RETAINER, SPEAKER (PART OF 23) 2005-2007
022 10369087 ДИНАМИК, RDO W/S SI G/MLDG (PART OF 23) (TWEETER) N257 2005-2007 02
023 10369089 MOLDING, W/S SI GARN (INCLS 21, 22) (EBONY) N2 2005-2007 01
023 10369091 MOLDING, W/S SI GARN (INCLS 21, 22) (EBONY) N2 2005-2007 01
024 15115155 HANDLE, ASST (INCLS 25) (EBONY) N2 2007-2007 02
025 RETAINER, ASST HDL (PUSH ON) (PART OF 24) 2005-2007
026 12338108 RETAINER, C/PLR MLDG (TYPE U SPR CLIP) (PART OF 2) (9.665) (ACDelco #12338108) N2 (36) 2006-2007 04
027 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 1) 2005-2007 08
028 15184869 BRACKET, FRT S/D SILL TR PLT N2 2005-2007 02
