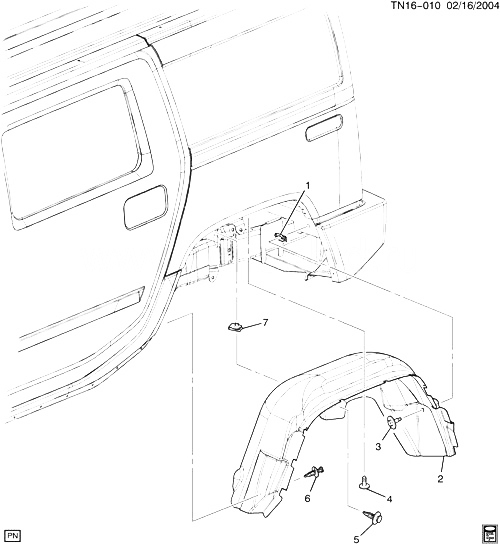

(TN16-010) - 2003-2009 N2 ЗАДНЯЯ КОЛЕСНАЯ АРКА HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11517769 NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (RR W/H PNL SIGHT SHLD) 2003-2009 02
002 15111879 SHIELD, RR W/H PNL SIGHT N2 2003-2009 01
002 15111880 SHIELD, RR W/H PNL SIGHT N2 2003-2009 01
003 11517347 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9 THD, 24 O.D., P-PT, 9.8, SN-ZN (RR W/H PNL SIGHT SHLD) 2003-2009 02
004 11515007 SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (RR W/H PNL SIGHT SHLD) 2003-2009 06
005 11561878 RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (RR W/H PNL SIGHT SHLD) 2003-2009 04
006 10134407 RETAINER, RR W/H PNL SIGHT SHLD (EBONY) (17.8 X 6.3 X 20.4MM) (NYLON) (ROUND PUSH-IN INCLS PUSH BUTTON LOCK) (1.272) N2 2006-2009 02
007 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RR W/H PNL SIGHT SHLD) (ACDelco #11513599) 2003-2009 06
