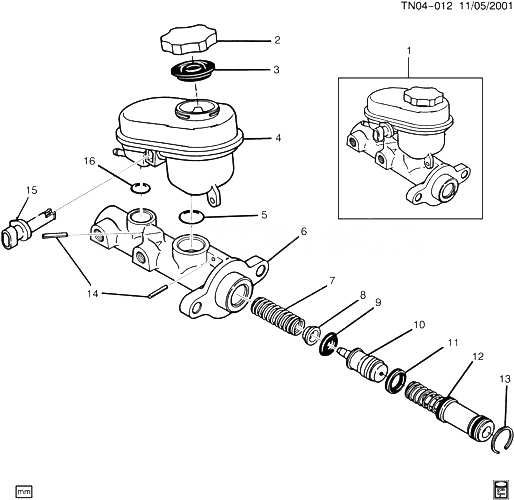

(TN04-012) - 2003-2007 N2 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 18047533 CYLINDER, BRK MAS (INCLS 2-16) (ACDelco #174-797) N257 (JH6) 2003-2007 01
002 22688449 CAP, BRK M/CYL RSVR (INCLS 3) N257 (JH6) 2003-2007 01
003 DIAPHRAGM (PART OF 2) 2003-2007
004 18048543 RESERVOIR KIT, BRK M/CYL (INCLS 5, 16) N257 (JH6) 2003-2007 01
005 SEAL, RESERVOIR RR BRK (PART OF 4) 2003-2007
006 CYLINDER BODY 2003-2007
007 SPRING 2003-2007
008 RETAINER, SPRING (*KIT1) 2003-2007
009 PRIMARY SEAL (*KIT1) 2003-2007
010 18047536 PISTON, BRK M/CYL SECD N257 (JH6) 2003-2007 01
011 SECONDARY SEAL (*KIT1) 2003-2007
012 PISTON, BRK M/CYL PRIM (*KIT1) 2003-2007
013 RETAINER (*KIT1) 2003-2007
014 SPRING PIN 2003-2007
015 18012741 SWITCH, BRK FLUID LVL IND (ACDelco #18012741) N2 (JH6) 2006-2007 01
016 SEAL, RESERVOIR FRT BRK (PART OF 4) 2003-2007
K01 18047534 CYLINDER KIT, BRK MAS (INCLS 8, 9, 11-13) (ACDelco #175-445) N257 (JH6) 2003-2007 01
