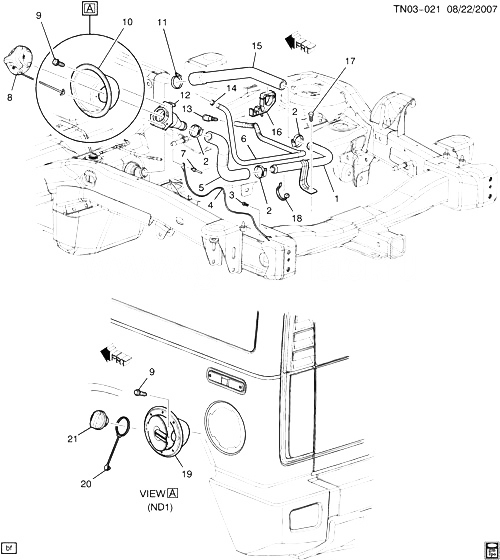

(TN03-021) - 2007 N2 ЗАПРАВОЧНАЯ ГОРЛОВИНА PIPES HOSES HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25853757 PIPE, F/TNK FIL (INCLS 2, 4-7, 11-16, 18) N2 2007-2007 01
002 11610235 CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 16, 38MM OPEN, SS (PART OF 1) (3.003) 2007-2007 03
003 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG HARN TRLR LEAD) 2007-2007 01
004 12337820 STRAP, 15 TIE STRAP (PART OF 1) (ACDelco #12337820) 2007-2007 02
005 HOSE, F/TNK FIL (PART OF 1) 2007-2007
006 HOSE, EVAP EMIS (PART OF 1) 2007-2007
007 RIVET, F/TNK FIL PIPE GND STRP (PART OF 1) 2007-2007
008 25827646 CAP, F/TNK FIL (ACDelco #GT306) N2 (EXC ND1) 2007-2007 01
009 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (F/TNK FIL PIPE SUPT) (9.665) 2007-2007 03
010 15903412 HOUSING, F/TNK FIL PIPE N2 (EXC ND1) 2007-2007 01
011 11561790 CLAMP, F/TNK FIL HOSE (CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 21, 55MM OPEN, SS, W/LOCATOR TAB) (PART OF 1) N2 2007-2007 01
012 RESTRICTOR, F/TNK FIL PIPE (PART OF 1) 2007-2007
013 CONNECTOR, EVAP EMIS RR HOSE (PART OF 1) 2007-2007
014 11561790 CLAMP, F/TNK FIL HOSE (CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 21, 55MM OPEN, SS, W/LOCATOR TAB) (PART OF 1) N2 2007-2007 01
015 HOSE, F/TNK FIL (PART OF 1) 2007-2007
016 CLIP, F/TNK FIL PIPE (PART OF 1) 2007-2007
017 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (F/TNK FIL ; VENT HOSE BRKT) 2007-2007 02
018 12337820 STRAP, 15 TIE STRAP (PART OF 1) (ACDelco #12337820) 2007-2007 02
019 15844367 ДВЕРЬ, F/TNK FIL N2 (ND1) 2007-2007 01
019 25839737 ДВЕРЬ, F/TNK FIL (USE TOGETHER WITH 25861414) N2 (ND1) (EXC WS2) 2007-2007 01
021 25820825 CAP, F/TNK FIL (INCLS 20) (BUTTON TYPE TETHER) (ACDelco #GT289) N2 (ND1) 2007-2007 01
021 25835357 CAP, F/TNK FIL (INCLS 20) (ACDelco #GT315) N2 (ND1) 2007-2007 01
