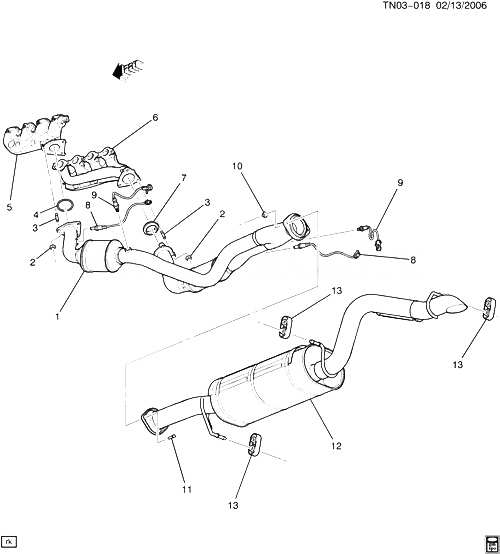

(TN03-018) - 2007 N2 СИСТЕМА ОТРАБОТАВШИХ ГАЗОВ-V8 HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15804783 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) N2 (LQ4) 2007-2007 01
001 15804783 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) N2 (LQ4) 2007-2007 01
002 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MANIF PIPE) 2007-2008 06
003 11589264 STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE) 2007-2008 06
004 15077362 SEAL, EXH MANIF PIPE N2 (LQ4) 2007-2007 01
005 MANIFOLD, EXH (SEE GROUP 00.000 ДВИГАТЕЛЬ В СБОРЕ-MANIFOLD ; FUEL PARTS FOR DETAILED ILLUSTRATED VIEW) (INCLS SHIELD, BOLTS) 2007-2008
006 MANIFOLD, EXH (SEE GROUP 00.000 ДВИГАТЕЛЬ В СБОРЕ-MANIFOLD ; FUEL PARTS FOR DETAILED ILLUSTRATED VIEW) (INCLS SHIELD, BOLTS) 2007-2008
007 15035747 SEAL, EXH MANIF PIPE N2 (LQ4) 2007-2007 01
008 12589321 ДАТЧИК, HTD OXY (POSN 2) (PRE CONVERTER) (ACDelco #213-3533) N2 (LQ4) 2007-2007 02
009 12590847 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (ACDelco #213-3538) N2 (LQ4) 2007-2007 02
009 19107259 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (4 WIRE) (ACDelco #213-2915) (ALL MAKES) N257 (06) (LQ4) 2007-2007 01
009 19107259 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (4 WIRE) (ACDelco #213-2915) (ALL MAKES) N257 (36) (LQ4) 2007-2007 01
009 19107259 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (4 WIRE) (ACDelco #213-2915) (ALL MAKES) N257 (06) (LQ4) 2007-2007 01
009 19107259 ДАТЧИК, HTD OXY (POSN 3) (POST CONVERTER) (4 WIRE) (ACDelco #213-2915) (ALL MAKES) N257 (36) (LQ4) 2007-2007 01
010 15709703 ГАЙКА, HEX 10X1.5THD, 21.8 OD SS (EXH MUFF) 2007-2008 02
011 15028620 STUD, EXH PIPE (PART OF 12) (M10X1.5X30MM) (BUTTON HEAD) N2 (LQ4) 2007-2007 02
012 15859652 MUFFLER, EXH (W/EXH PIPE ; TAIL PIPE) (INCLS 11) N2 (LQ4) 2007-2007 01
013 15092802 INSULATOR, EXH MUFF HNGR N2 2007-2008 03
