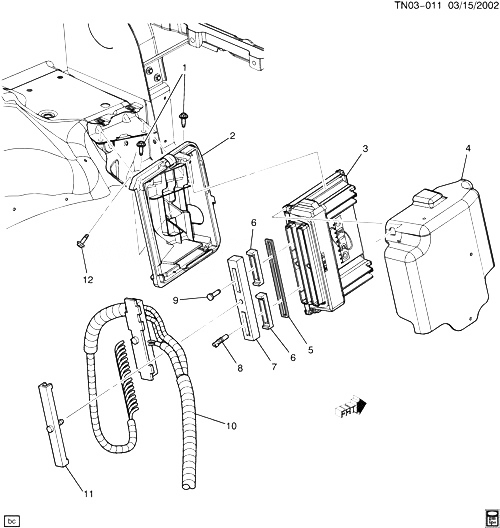

(TN03-011) - 2003-2007 N2 CONTROL MODULE RELATED PARTS HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PCM BRKT) 2003-2007 03
002 15047570 BRACKET, PCM N257 2003-2007 01
003 89017750 MODULE, PWRT CONT (REMAN) (CODE YHKU, YHKS, YDNF, YDNH, YDPD, YDPF, YHZU, YHZW, YJCN, YJCP, 2723, 2724, YJFW, YJFX, YFYD, YFYF, YFYA, YFYC, YMKH, YKYY, YMWY, YMWZ, YMSZ, YMTA, YNBN, YHZS, YNBR, YHZT) (REQUIRES PROGRAMMING) (ACDelco #89017750) N2 2004-2007 01
003 89017750 MODULE, PWRT CONT (REMAN) (CODE YRKM, YRKN) (REQUIRES PROGRAMMING) (ACDelco #89017750) N2 2007-2007 01
004 15071609 COVER, PCM N257 2003-2007 01
005 12048086 SEAL, WRG CONN (1.800) N257 2003-2007 02
006 RETAINER, ECM WRG HARN CONN 2004-2007
007 12167308 CONNECTOR, MDL-PWRT CONT (INCLS SEAL, COVER, RETS) (W/O LEADS) (80-WAY FEMALE USE TERM 12084912 18 GA ; TERM 12084913 20 GA) N257 2007-2007 02
008 12045773 TERMINAL, MALE 150 METRI-PACK, 18-20 GA (AIR DRYER) 2003-2007 02
009 PLUG, WRG HARN CONN (PART OF 10) 2003-2007
010 25810825 HARNESS, ENG WRG (INCLS 9) N2 (LQ4) 2007-2007 01
011 12193918 COVER, WRG HARN CONN N257 2003-2007 01
012 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PCM BRKT) 2003-2007 03
