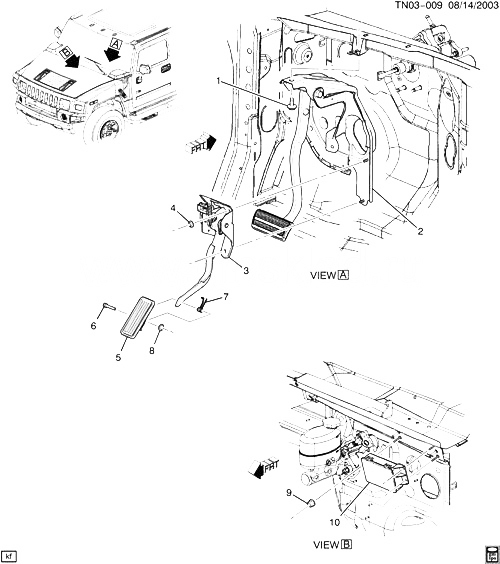

(TN03-009) - 2003-2007 N2 УПРАВЛЕНИЕ АКСЕЛЕРАТОРОМ (LQ4/6.0U) HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11508581 БОЛТ, FLANGE HEAD, M10X1.5X16 (BRK PED BRKT) 2003-2007 01
002 ПЕДАЛЬ, ТОРМОЗА ; ACCEL (W/BRKT) (SEE GROUP 04.000 ПЕДАЛЬ ТОМОЗА AND КРЕПЛЕНИЕ ГЛАВНОГО ЦИЛИНДРА FOR DETAILED ILLUSTRATED VIEW) 2003-2007
003 15264643 PEDAL, ACCEL (INCLS 5-8) (INCLS PEDAL, SPRING, PEDAL POSITION SENSOR) N2 (JH6) (EXC JF4) 2005-2007 01
004 15685170 ГАЙКА, HEX-HD, W/FL WA, M6X1, 5.5 THK, 9, 7111M, 2MM THK 19 OD WA, NYLOC (ACCEL PED LVR) (8.917) 2003-2007 02
005 15713165 PEDAL, ACCEL (PART OF 3) (INCL PEDAL PAD ONLY) (EXC ROD, SPRING, RETAINER) N257 (06-36) (JH6) 2005-2007 01
006 PIN, ACCEL PED PIV (PART OF 3) 2003-2007
007 15713166 SPRING, ACCEL PED (PART OF 3) N257 (06-36) (LQ4, JH6) 2005-2007 01
008 RETAINER, ACCEL PED (PART OF 3) 2003-2007
009 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (THROT ACTR CONT MDL BRKT) 2003-2007 03
010 12588923 MODULE, ELEK THROT ACTR CONT (DRIVER SIDE OF FIREWALL) (ACDelco #12588923) N2 (LQ4) 2007-2007 01
