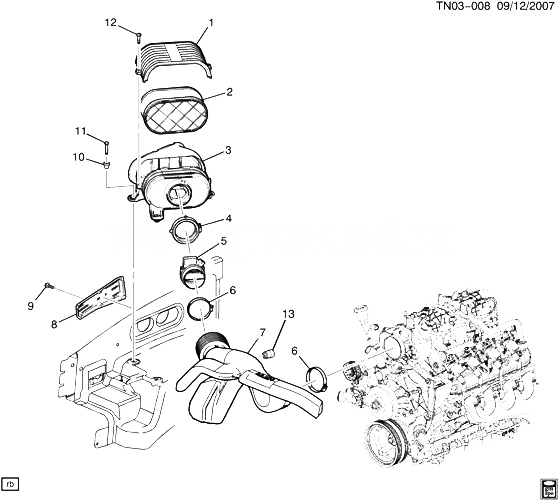

(TN03-008) - 2003-2007 N2 СИСТЕМА ВПУСКА ВОЗДУХА (LQ4/6.0U) HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 COVER, A/CL HSG (PART OF 3) 2003-2007
002 15286805 ELEMENT, A/CL (ACDelco #A3100C) N257 (06-36) (LQ4) 2005-2007 01
002 88944151 ELEMENT, A/CL (BLUE POLY) (ACDelco #88944151) N257 (06-36) (LQ4) 2005-2007 01
003 19153610 CLEANER, AIR (INCLS BOLT, COVER, SEAL, RETAINER, GROMMET) (EXC ELEMENT, SENSOR) (INCLS 1, 4, 10, 12) N257 (06-36) (LQ4) 2005-2007 01
004 88944150 SEAL, A/CL OTLT DUCT (PART OF 3) N257 (06-36) (LQ4) 2005-2007 01
005 15904068 ДАТЧИК, MASS AIRFLOW (INCLS AIR TEMP SENSOR) (ACDelco #213-4160) N2 2007-2007 01
006 CLAMP, A/CL OTLT DUCT (PART OF 7) 2003-2007
007 15059739 DUCT, A/CL OTLT RR (INCLS 6, 13) (INCL INDICATOR) N257 (06-36) (LQ4) 2005-2007 01
008 15080962 COVER, F/FDR UPR REINF HOLE N2 2005-2007 01
009 15120856 RETAINER, F/FDR UPR REINF HOLE CVR (PUSH IN) (BLACK) N2 2005-2007 06
010 88944153 INSERT, A/CL HSG CVR BOLT THD (PART OF 3) N257 (06-36) (LQ4) 2005-2007 03
011 11516725 БОЛТ, A/CL (M6X1X40) N257 (06-36) (LQ4) 2005-2007 03
012 БОЛТ, A/CL COVER (PART OF 3) 2003-2007
013 15063809 INDICATOR, A/CL AIR RSTN (PART OF 7) N257 (06-36) (LQ4) 2005-2007 01
