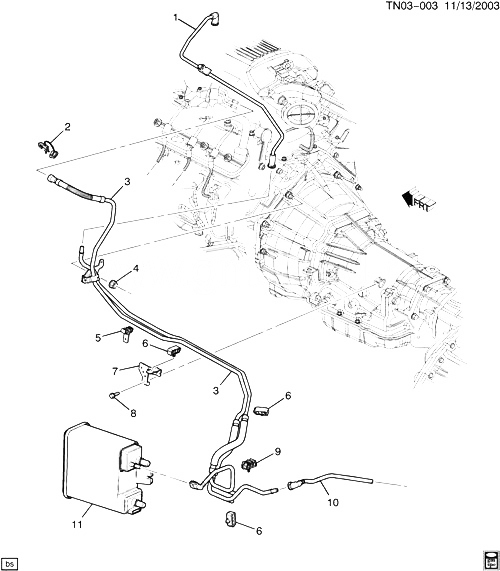

(TN03-003) - 2004-2007 N2 ТОПЛИВНАЯ СИСТЕМА-FRONT (LQ4/6.0U) HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12575527 TUBE, EVAP EMIS CNSTR PURGE N2 (LQ4) 2005-2007 01
002 25654373 RETAINER, FUEL FEED HOSE CONN (PLASTIC) N2 2006-2007 01
003 15270308 HOSE, FUEL FEED ; EVAP EMIS ; RTN (INCLS 5-7, 9) N2 (LQ4) 2006-2007 01
004 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED ; RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) 2004-2007 01
005 15011436 CLIP, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) (2.559) N2 (LQ4) 2006-2007 01
006 15022177 CLIP, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) N2 (LQ4) 2006-2007 03
007 15034434 BRACKET, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) (3.163) N2 (LQ4) 2004-2007 01
008 11519124 BOLT-HEX, M5X.8X16, 12.5 OD, 6202M, 4435M, TAP, TR-PT (FUEL FEED ; RTN FRT HOSE BRKT) 2004-2007 01
009 15112820 CLIP, FUEL FEED ; EVAP EMIS ; RTN HOSE (PART OF 3) N2 (LQ4) 2005-2007 03
010 HOSE, FUEL RTN (SEE GROUP 03.000 ТОПЛИВНЫЙ БАК FOR DETAILED ILLUSTRATED VIEW) 2004-2007
011 CANISTER, EVAP EMIS (SEE GROUP 03.000 VAPOR CANISTER ; RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) 2004-2007
