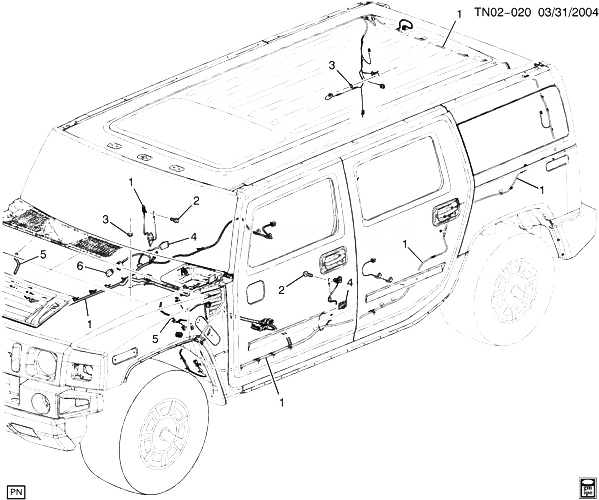

(TN02-020) - 2005-2007 N2(06) ПРОВОДКА-КУЗОВ HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15869960 HARNESS, BODY WRG (INCLS 4, 6) N257 (06) 2005-2007 01
002 11516872 BOLT-HEX M6X1X20, 11.5 THD, 17 OD, 6202M, 6280M (BODY WRG HARN GND) 2004-2007 02
003 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BODY WRG HARN GND) 2004-2007 02
004 12166036 SOCKET, C/LP (PART OF 1) (CLEAR) (W/LEADS ; LENS) (10.275) (ACDelco #LS66) N257 (06-36) 2005-2007 02
005 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) 2004-2007
006 13502676 RELAY, DR LK (BODY HARN) (PART OF 1) (2.485) (ACDelco #D1703A) N2 2004-2007 02
