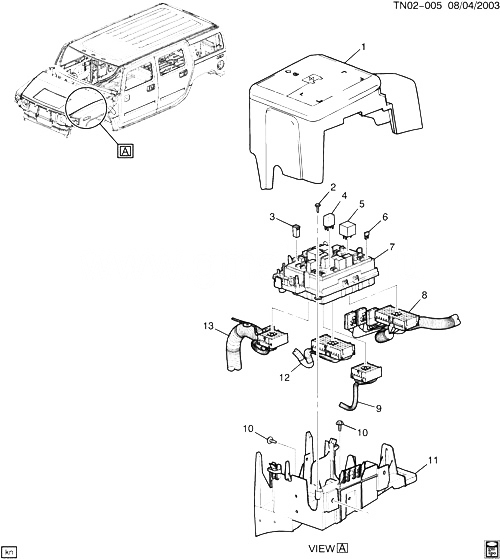

(TN02-005) - 2003-2007 N2 БЛОК-ПОДКАПОТНЫЙ HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15291011 COVER, ENG WRG HARN J/BLK (U/КАПОТ BEC) N2 2007-2007 01
002 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ENG WRG HARN J/BLK) 2003-2007 02
003 15319477 FUSE, 30AMP, PINK, J-CASE, FEMALE, REGULAR (PART OF 7) 2003-2007 AR
003 15319478 FUSE, 40AMP, GREEN, J-CASE, FEMALE (PART OF 7) (ACDelco #15319478) 2003-2007 AR
003 15319479 FUSE, 50 AMP, RED, J-CASE, FEMALE, REGULAR BLOW (PART OF 7) 2003-2007 AR
003 15319480 FUSE, 60 AMP, YELLOW, J-CASE, FEMALE, REGULAR BLOW (PART OF 7) 2003-2007 AR
004 19115080 RELAY, HDLP HIGH BEAM (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) N257 2003-2007 01
004 19115080 RELAY, HDLP LOW BEAM (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) N257 2003-2007 01
004 19115080 RELAY, СИГНАЛ (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) N257 2003-2007 01
004 19115080 RELAY, F/PMP (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) N2 (LQ4) 2003-2007 01
004 19115080 RELAY, A/C CMPR (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) N2 2005-2007 01
004 19115080 RELAY, WSWA PUMP (PART OF 7) (GRAY) (SPST 280 MICRO) (4-TERMINAL) (3.670) (ACDelco #15-50688) N2 (LQ4) 2003-2007 01
004 19115082 RELAY, DAYTIME RUNNING LP (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, BLACK, MICRO, CODE 7866) (PART OF 7) (STDT 280 MICRO) (1.055) (ACDelco #15-50448) N257 2003-2007 01
004 19115082 RELAY, DAYTIME RUNNING LP (5-WAY, HI-PWR, W/RESISTOR, UNSHROUDED, BLACK, MICRO, CODE 7866) (PART OF 7) (STDT 280 MICRO) (1.055) (ACDelco #15-50448) N2 2006-2007 01
005 12177236 RELAY, STRTR (4 TERM) (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C) N257 (06-36) (LQ4) 2005-2007 01
005 12177236 RELAY, IGN (4 TERM) (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C) N257 (06-36) (LQ4) 2005-2007 01
005 12177236 RELAY, PARK LP (4 TERM) (PART OF 7) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (9.778) (ACDelco #D7065C) N257 (06-36) 2005-2007 01
006 12092079 FUSE, 10A, MINI, RED (PART OF 7) 2003-2007 AR
006 88909754 FUSE, 15A, MINI, BLUE (PART OF 7) (ACDelco #ATM15-25) 2003-2007 AR
006 88909755 FUSE, 20A, MINI, YELLOW (PART OF 7) (ACDelco #ATM20-25) 2003-2007 AR
006 88909756 FUSE, 25A, MINI, CLEAR (PART OF 7) (ACDelco #ATM25-25) 2003-2007 AR
006 88909771 LT GREEN (PART OF 7) (ACDelco #MAX30-5) 2003-2007 AR
007 15786043 BLOCK, ENG WRG HARN JUNC (INCLS 3-6) (W/60 AMP J-CASE FUSE) N2 (LQ4) 2006-2007 01
008 HARNESS, I/P WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) 2003-2007
009 HARNESS, FWD LP WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ФАРЫ FOR DETAILED ILLUSTRATED VIEW) 2003-2007
010 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (ENG WRG HARN FUSE BLK BRKT) 2003-2007 04
011 15175348 BRACKET, ENG WRG HARN FUSE BLK (USED TO MOUNT U/H BEC) N257 2003-2007 01
012 HARNESS, ENG WRG (SEE GROUP 02.000 ЖГУТЫ ПРОВОДОВ-ДВИГАТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) 2003-2007
013 HARNESS, CHAS WRG (SEE GROUP 02.000 ЖГУТ ПРОВОДОВ/CHASSIS FOR DETAILED ILLUSTRATED VIEW) 2003-2007
