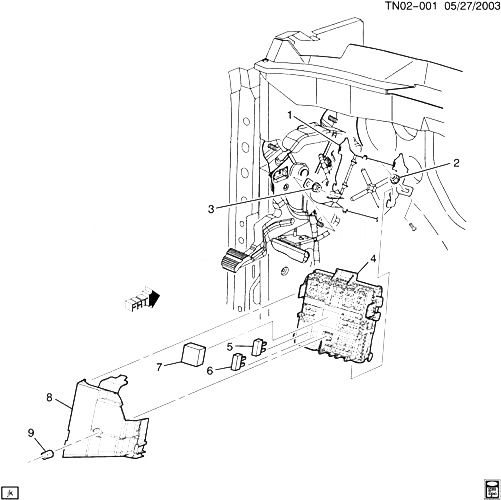

(TN02-001) - 2003-2007 N2 BLOCK-I/P MID BEC(DL7) HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25867232 BRACKET, DA WRG HARN J/BLK N257 (06-36) 2005-2007 01
002 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (DA WRG HARN J/BLK BRKT) 2003-2007 01
003 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917) 2003-2007 03
004 15266958 BLOCK, BODY WRG HARN JUNC (INCLS 5-7) N2 (DL7) 2006-2007 01
005 12088575 BREAKER, CIRCUIT, 25AMP, WHITE (PART OF 4) 2003-2007 01
006 12077863 BREAKER, CIRCUIT, 30 AMP, GREEN (PART OF 4) 2003-2007 01
007 12177236 RELAY, R/WDO DEFG (4 TERM) (PART OF 4) (GRAY) (SPST 280 MINI) (4-WAY) (SQUARE CASE) (W/RESISTOR) (LABELED 12177236) (ACDelco #D7065C) N2 2003-2007 01
008 15076505 COVER, DA WRG HARN FUSE BLK N257 (06-36) 2005-2007 01
009 15599095 NUT, DA WRG HARN FUSE BLK CVR (M6X1) (PUSH ON) N257 (06-36) 2005-2007 01
