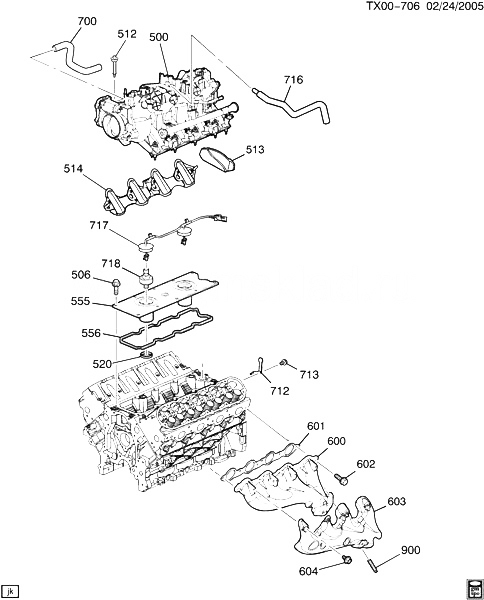

(TX00-706) - 2004-2007 N2 ДВИГАТЕЛЬ В СБОРЕ-6.0L V8 PART 5 MANIFOLD FUEL RELATED PARTS (LQ4/6.0U) HUMMER - H2 SUV 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
500 MANIFOLD, INT (SEE GROUP 03.000 ВХОДНОЙ КОЛЛЕКТОР FOR DETAILED ILLUSTRATED VIEW) 2004-2007
506 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (ENG BLK VALLEY CVR) 2004-2007 10
512 89017368 BOLT KIT, INT MANIF (KIT INCLS 5 BOLTS.TWO KITS REQD PER ДВИГАТЕЛЬ) N2 (LQ4) 2004-2007 01
513 17113563 INSULATOR KIT, INT MANIF N257 (06-36) (LQ4, NC1, M32) 2005-2007 01
514 89060413 GASKET KIT, INT MANIF N2 (LQ4) 2004-2007 01
514 89060413 GASKET KIT, INT MANIF N257 (06-36) (LQ4) 2005-2007 01
520 12558177 GROMMET, KNOCK SEN (PART OF 555) N257 (06-36) (LQ4) 2005-2007 02
555 12575742 COVER, ENG BLK VALLEY (INCLS 520, 556) N257 (06-36) (LQ4) 2005-2007 01
556 12558178 GASKET, ENG BLK VALLEY CVR (PART OF 555) N257 (06-36) (LQ4) 2005-2007 01
600 12616285 MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS) N257 (06-36) (LQ4) 2005-2007 01
600 12616286 MANIFOLD, EXH (INCLS 603, 604) (INCLS SHIELD, BOLTS) N257 (06-36) (LQ4) 2005-2007 01
601 12600530 GASKET, EXH MANIF N257 (LQ4) 2007-2007 02
602 11518860 БОЛТ, EXH MANIF (8.900) N257 (06-36) (LQ4) 2005-2007 12
603 12562243 SHIELD, EXH MANIF HT (PART OF 600) N257 (06-36) (LQ4) 2005-2007 01
603 12562244 SHIELD, EXH MANIF HT (PART OF 600) N257 (06-36) (LQ4) 2005-2007 01
604 10228350 БОЛТ, EXH MANIF H/SHLD (PART OF 600) (M6X1X6.5 HEX FLANGE) N2 (LQ4) 2004-2007 10
700 12582227 HOSE, PCV N257 (06-36) (LQ4) 2005-2007 01
712 12578463 STOP, F/INJN FUEL RL N257 (06-36) (LQ4) 2005-2007 01
713 11515764 БОЛТ, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (F/INJN FUEL RL STOP) 2004-2007 01
716 12615914 TUBE, PCV N257 (06-36) (LQ4) 2005-2007 01
717 12601822 WIRE, KNOCK SEN (INCLS 1 CONN TO ENG HARNESS, 2 CONN TO KNOCK SENSORS, 2 GROMMET) N257 (06-36) 2005-2007 01
718 12589867 ДАТЧИК, KNOCK (ACDelco #213-3521) N257 (06-36) (LQ4) 2005-2007 02
900 STUD, EXH MANIF PIPE 2004-2007
900 15028620 STUD, EXH MANIF PIPE (M10X1.5X30MM) (BUTTON HEAD) N2 (LQ4) 2004-2007 04
