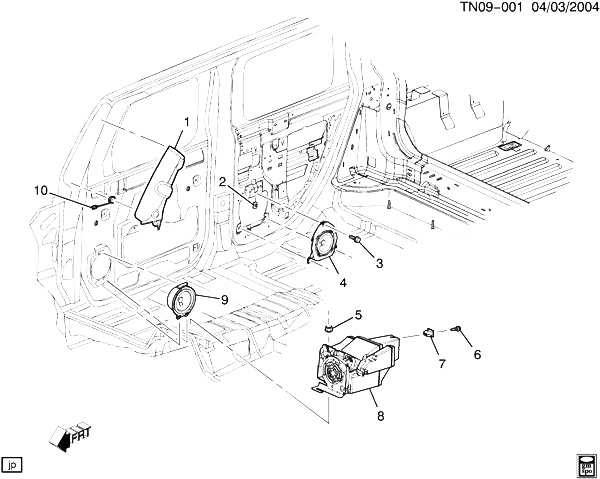

(TN09-001) - 2005-2007 N2(36) АУДИОСИСТЕМА-КОЛОНКИ HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 10369089 MOLDING, W/S SI GARN (INCLS 10) (EBONY) N2 2005-2007 01
001 10369091 MOLDING, W/S SI GARN (INCLS 10) (EBONY) N2 2005-2007 01
002 11517760 ГАЙКА, M6X1, 15 WIDE, 21 LG, 10.5 C-E, .8-4 PANEL, 1050 (RDO RR S/D SPKR BRKT) 2005-2007 06
003 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (RDO RR S/D SPKR BRKT) 2005-2007 06
004 15054680 ДИНАМИК, RDO RR S/D (ACDelco #15054680) N257 (UQA) 2005-2007 01
004 15054681 ДИНАМИК, RDO RR S/D (ACDelco #15054681) N257 (UQA) 2005-2007 01
005 11508388 ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (RDO F/FLR CNSL SPKR) (8.915) 2005-2007 01
006 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO F/FLR CNSL SPKR) (9.665) 2005-2007 02
007 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (RDO F/FLR CNSL SPKR) (ACDelco #11513599) 2005-2007 02
008 15177436 ДИНАМИК, RDO F/FLR CNSL (ACDelco #15177436) N257 (UQA) 2005-2007 01
009 15236987 ДИНАМИК, RDO FRT S/D (ACDelco #15236987) N2 2006-2007 02
010 10369087 ДИНАМИК, RDO W/S SI G/MLDG (PART OF 1) (TWEETER) N257 2005-2007 02
