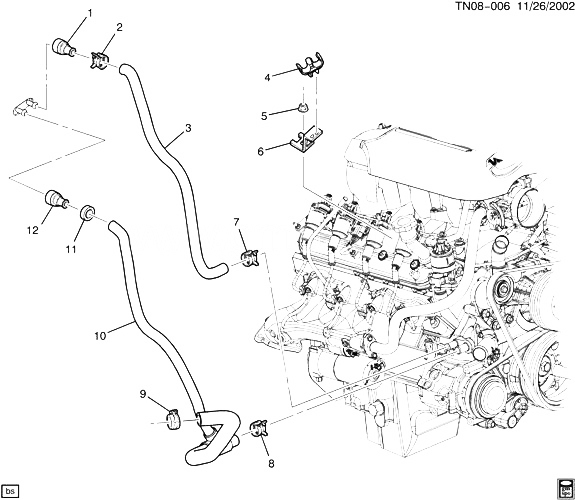

(TN08-006) - 2003-2007 N2 HOSES PIPES/HEATER HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15032062 CONNECTOR, HTR INL HOSE (PART OF 3) (NATURAL) (74.93MM LONG) (QUICK CONNECT ASM) N2 2003-2007 01
002 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 3) 2003-2007 01
003 15763368 HOSE, HTR INL (INCLS 1, 2, 7) (853X137X45MM) (CODE 3368, WMF) N2 2003-2007 01
004 15050765 CLIP, HTR HOSE (PART OF 6) (73.0MM WIDE) N2 2003-2007 01
005 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (HTR HOSE CLIP BRKT) 2003-2007 01
006 15050764 BRACKET, HTR HOSE CLIP (INCLS 4) N2 2003-2007 01
007 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 3) 2003-2007 01
008 11516225 CLAMP, 25MM DIA, 15MM WIDTH, 6298 MATL (PART OF 10) 2003-2007 01
009 15059583 CONNECTOR, HTR OTLT HOSE (PART OF 10) (74.93MM LONG) (QUICK CONNECT ASM) N2 2003-2007 01
009 15059584 CONNECTOR, HTR OTLT HOSE (PART OF 10) (76.02MM LONG) (QUICK CONNECT ASM) N2 2003-2007 01
010 15058002 HOSE, RAD SURGE TK OTLT (INCLS 8, 9, 11, 12) (CODE 8002) N2 2003-2007 01
011 STRAP, RAD SURGE TK OTLT HOSE (PART OF 10) 2003-2007
012 15059583 CONNECTOR, HTR OTLT HOSE (PART OF 10) (74.93MM LONG) (QUICK CONNECT ASM) N2 2003-2007 01
012 15059584 CONNECTOR, HTR OTLT HOSE (PART OF 10) (76.02MM LONG) (QUICK CONNECT ASM) N2 2003-2007 01
