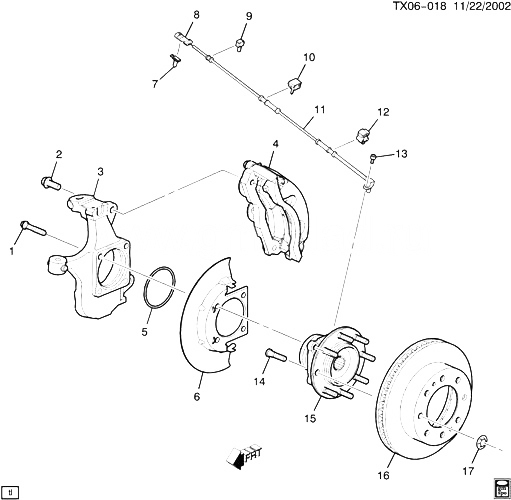

(TX06-018) - 2003-2009 N2 BRAKE CALIPER MOUNTING/FRONT KNUCKLE HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15719028 БОЛТ, FRT WHL BRG (M14X1.5X70) (6.104) N2 2003-2009 08
002 18026702 БОЛТ, FRT BRK CLPR (M16X2X41, 30THD) (30.5 OD, 10.9, GM6174M, HDR PT. W/ADH 6194M) (TO BRKT) N2 (JH6) 2003-2009 04
003 25850470 KNUCKLE, STRG (MCHG) (INCLS 5, 17) (INCLS O-RING) N2 (JH6) 2003-2009 01
003 25850471 KNUCKLE, STRG (MCHG) (INCLS 5, 17) (INCLS O-RING) N2 (JH6) 2003-2009 01
004 СУППОРТ, ПЕРЕДНИЙ ТОРМОЗНОЙ (SEE GROUP 04.000 ТОРМОЗНОЙ СУППОРТ ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2003-2009
005 15017464 SEAL, FRT WHL HUB (O RING) (PART OF 3) (ACDelco #290-300) N2 (JH6) 2003-2009 02
006 15719023 SHIELD, FRT BRK N257 (JH6) 2003-2008 02
007 12186353 RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 11, 15) (BLACK) (7.00/6.25 DIA, SLIDING) N257 2003-2008 01
008 12162000 CONNECTOR, LP-SI MKR (PART OF 11, 15) (BLACK) (2-WAY MALE M/P150 W/O LEADS) (2.530) N257 2006-2006 02
009 15715954 CLIP, WHL SPD SEN WIRE (PART OF 11, 15) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) N257 (JH6) 2003-2009 02
010 15715952 CLIP, WHL SPD SEN WIRE (PART OF 11, 15) (HOLDS (1) 10MM GROMMET, TREE FITS M6 THD HOLE) N257 (JH6) 2003-2009 02
011 15225723 ДАТЧИК, FRT WHL SPD (PART OF 15) (INCLS 7-10, 12) (ACDelco #15225723) N2 (JH6) 2006-2007 02
012 CLIP, WHL SPD SEN WIRE (PART OF 11, 15) 2003-2009
013 15960191 БОЛТ, WHL SPD SEN (PART OF 15) (M6X1X12) N257 (JH6) 2003-2009 02
014 11588810 STUD, FRT WHL (PART OF 15) (M14X1.5X65) N2 2003-2009 16
015 15946732 HUB, FRT WHL (W/WHL SPD SEN) (INCLS 7-14) (MAY APPEAR DIFFERENT THAN OLD, WORKS ON 2WD ; 4WD) (ACDelco #FW338) N257 (JH6) 2003-2006 02
016 18060215 ROTOR, FRT BRK (DELPHI/SAG) (ACDelco #177-864) N257 (JH6) 2003-2008 02
017 RETAINER, FRT BRK ROT (PUSH ON) (PART OF 3) 2003-2009
