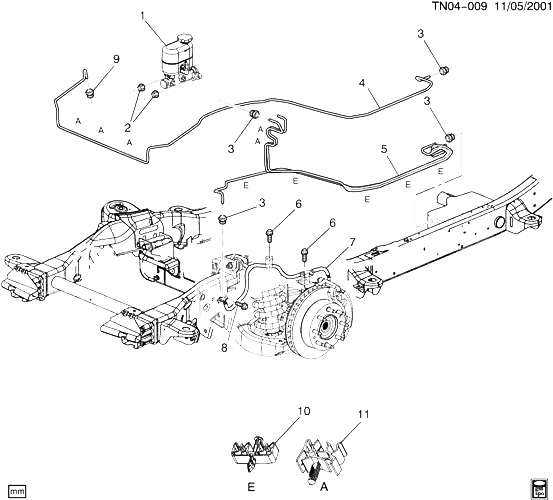

(TN04-009) - 2003-2007 N2 ПЕРЕДНИЕ ТОРМОЗНЫЕ ТРУБКИ HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 18047533 CYLINDER, BRK MAS (ACDelco #174-797) N257 (JH6) 2003-2007 01
002 11517996 NUT, BRK M/CYL (M10X1.5, 11.2 THK) (8.917) N2 (JH6) 2003-2007 02
003 15724652 NUT (FRT BRK FRT PIPE) 2003-2007 04
004 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (FRT BRK C/OVR) 2003-2007 AR
005 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (FRT BRK C/OVR) 2003-2007 AR
006 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (FRT BRK HOSE) 2003-2007 04
007 15852641 HOSE, FRT BRK (INCLS BANJO BOLT) (ACDelco #176-1205) N2 (JH6) 2003-2007 01
007 15852642 HOSE, FRT BRK (INCLS BANJO BOLT) (ACDelco #176-1206) N2 (JH6) 2003-2007 01
008 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) 2003-2007 01
009 15724652 NUT (RR BRK PIPE) 2003-2007 01
010 11561432 CLIP, FRT BRK PIPE (64.68X25.86X17.0) (HOLDS 4 TUBES) N257 (JH6) 2003-2006 05
011 15010672 CLIP, FRT BRK FRT PIPE (GRAY) (1-6.35MM, 1-15.0MM) (PUSH PIN W/2 HOLES) (SERRATED) N257 (JH6) 2003-2006 05
