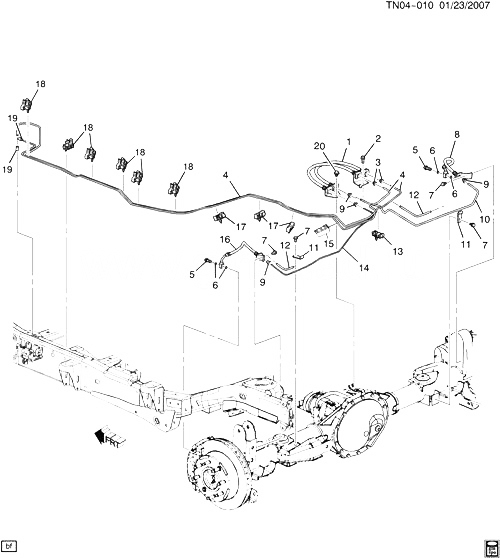

(TN04-010) - 2003-2007 N2 ЗАДНИЕ ТОРМОЗНЫЕ ТРУБКИ HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15864037 HOSE, RR BRK (ACDelco #176-1380) N257 (JH6) 2003-2007 01
002 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR BRK HOSE BRKT) (ACDelco #11570082) 2003-2007 01
003 11609784 NUT, RR BRK PIPE (7/16-24 EXTERNAL THREAD X .56) (8.921) N2 (JH6) 2004-2007 02
004 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (RR BRK C/OVR) 2003-2007 AR
005 FITTING, RR BRK HOSE (PART OF 8, 16) 2003-2007
006 GASKET, RR BRK HOSE FTG (PART OF 8, 16) 2003-2007
007 11508534 БОЛТ, HFH, M8X1.25X16, 16.8 O.D., MACH PT, 6171M, POR (RR BRK C/OVR PIPE BRKT) 2003-2007 04
008 15852644 HOSE, RR BRK (297MM LG) (INCLS 5, 6) (ACDelco #176-1208) N2 (JH6) 2003-2007 01
009 11588802 ГАЙКА, HEX, 3/8-24X9/16, 12.0 O.D., LOW CARB STEEL (RR BRK HOSE) 2003-2007 04
010 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (RR BRK C/OVR) 2003-2007 AR
011 11609219 CLIP, RR BRK C/OVR PIPE 2006-2007 02
012 12360513 ARMOR SHIELD, BRK PIPE (CUT TO LENGTH) (BRK PIPE) 2003-2007 AR
013 11561434 CLIP, RR BRK FRT PIPE (59.4X20.0X36.0) (HOLDS TWO 6.65 DIA TUBES AND ONE 10 DIA TUBE, NYLON 6/6-BLACK) N257 (06-36) (JH6) 2005-2006 01
014 12547207 TUBING, BULK, 3/16 X 20 FT ROLL, STL (RR BRK C/OVR) (8.964) 2003-2007 AR
015 15158803 CLIP, BRK PIPE (BLACK) (2-6.35MM DIA HOLES) (HINGED) N257 (JH6) 2003-2007 01
016 15852643 HOSE, RR BRK (296MM LG) (INCLS 5, 6) (ACDelco #176-1207) N2 (JH6) 2006-2007 01
017 15050269 CLIP, RR BRK FRT PIPE (BLACK) (3-6.35MM, 1-17.5MM) (PUSH PIN W/4 HOLES) N257 (JH6) 2003-2006 03
018 15065034 CLIP, RR BRK FRT PIPE N257 (JH6) 2003-2006 06
019 11609869 NUT, RR BRK PIPE (7/16-24 X .81 X .562) (8.921) N2 (JH6) 2004-2007 02
020 11513703 БОЛТ, HFH M8X1.25X18 (BRK PIPE BRKT) 2003-2007 01
