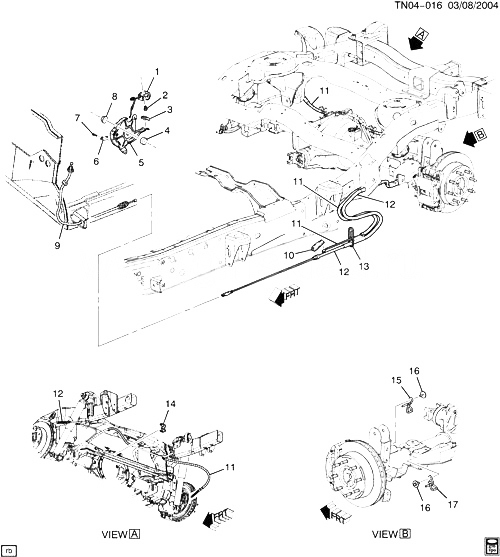

(TN04-016) - 2003-2009 N2 СИСТЕМА СТОЯНОЧНОГО ТОРМОЗА HUMMER - H2 SUV 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15929213 HANDLE, PARK BRK REL (PART OF 5) (EBONY) (INCLS CBL) N2 2006-2009 01
002 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (PARK BRK REL HDL HSG) 2003-2009 01
003 COVER, PARK BRK LVR PED (PART OF 5) 2003-2009
004 10382218 SPACER, PARK BRK LVR N257 2003-2009 02
005 15858653 MODULE, PARK BRK CONT (INCLS 1, 3, 6, 7, 9) N2 2006-2006 01
006 15045983 SWITCH, PARK BRK IND (PART OF 5) N257 2003-2009 01
007 09418944 SCREW, HWH, SELF TAP, #10-16X1, 3/8 O.D., M6010M, ZN (PART OF 5) 2003-2009 01
008 11516780 ГАЙКА, HEX W/CON WA, M8X1.25, 10THK, 19 O.D., 10, 7111M (PARK BRK CONT MDL) (8.917) 2003-2009 02
009 CABLE, PARK BRK FRT (PART OF 5) 2003-2009
010 15040292 EQUALIZER, PARK BRK CBL N257 2003-2009 01
011 15941091 CABLE, PARK BRK RR (ACDelco #179-2240) N257 2003-2009 01
012 25890198 CABLE, PARK BRK RR (ACDelco #25890198) N2 2003-2009 01
013 15169852 GUIDE, PARK BRK RR CBL (BLACK) (110.6X30X11.1MM) (NYLON) N257 2003-2009 01
014 15043173 CLIP, PARK BRK RR CBL (W/O HOLE) (W/3 OPENINGS) N257 2003-2009 02
015 10370760 GUIDE, PARK BRK RR CBL (FRONT) N257 (06-36) 2005-2009 01
016 11517560 SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (PARK BRK RR CBL GDE) 2003-2009 02
017 15054752 GUIDE, PARK BRK RR CBL (REAR) (73.2X48.2X46MM) (SPRING STEEL WIRE) N257 2003-2009 01
