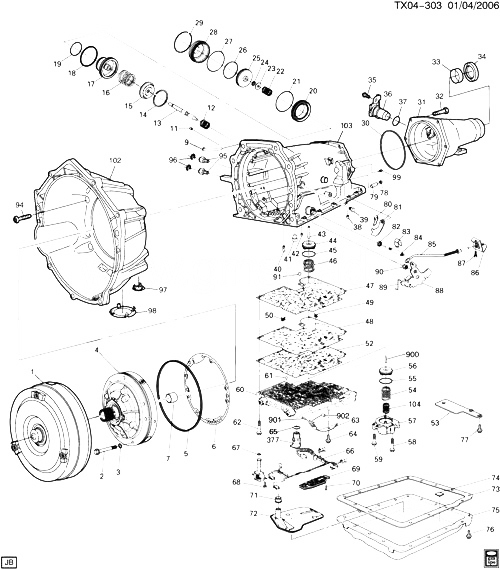

(TX04-303) - 2004-2009 ST АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M30) ЧАСТЬ 2 (4L60-E) КОРПУС И СОПРЯЖЕННЫЕ ДЕТАЛИ/СОЕДИНЕНИЕ ЗАМКА ПАРКОВКИ CHEVROLET TRAILBLAZER LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12491321 CONVERTER, TORQ (REMAN) ST1 (LL8, M30) 2005-2006 01
001 17803805 CONVERTER, TORQ (REMAN) ST1 (LH6, M30) 2005-2006 01
002 24233361 БОЛТ, A/TRNS FLUID PUMP (INCLS 3) (M8X1.25X60) (INCLS SEAL) (*KIT1) (ACDelco #24233361) ST1 (M30) 2004-2009 07
003 24208664 SEAL, A/TRNS FLUID PUMP BOLT (PART OF 2) (CONTAINS 10 SEALS) (ACDelco #24208664) ST1 (M30) 2005-2009 01
004 PUMP, A/TRNS FLUID (СМ. ГРУППУ 04.000 МАСЛЯНЫЙ НАСОС FOR DETAILED ILLUSTRATED VIEW) 2004-2009
005 24226315 SEAL, A/TRNS FLUID PUMP (WEDGE TYPE SEAL ASM) (*KIT1) (ACDelco #24226315) ST1 (M30) 2005-2009 01
006 12337931 ПРОКЛАДКА, A/TRNS FLUID PUMP (*KIT1) (ACDelco #12337931) ST1 (M30) 2005-2009 01
007 24206030 BUSHING, T/CV (ACDelco #24206030) ST1 (M30) 2004-2007 01
009 24202440 PIPE, A/TRNS VENT (*KIT8) (ACDelco #24202440) ST1 (M30) 2005-2009 01
011 08628864 ORIFICE, FWD CLU FEED (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) ST1 (M30) 2004-2009 01
012 08642273 ПРУЖИНА, 2-4 BAND SERVO RTN (ORANGE) (ACDelco #8642273) ST1 (M30) 2005-2009 01
013 08680499 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 1 GROOVE IN TAPERED POINT) (4.228) (ACDelco #8680499) ST1 (M30) 2005-2009 01
013 08680500 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY 2 GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680500) ST1 (M30) 2005-2009 01
013 08680501 PIN, 2-4 BAND SERVO PSTN (IDENTIFY BY NO GROOVES IN TAPERED POINT) (4.228) (ACDelco #8680501) ST1 (M30) 2005-2009 01
014 08642105 RING, 2-4 BAND SERVO 2ND APPL PSTN RET (ACDelco #8642105) ST1 (M30) 2005-2009 03
015 08642416 RETAINER, 2-4 BAND SERVO CUSH SPR (ACDelco #8642416) ST1 (M30) 2005-2009 01
016 08642539 ПРУЖИНА, 2-4 BAND SERVO PSTN CUSH (PINK) (ACDelco #8642539) ST1 (M30) 2005-2009 03
017 08642613 PISTON KIT, 2-4 BAND SERVO 2ND APPLY (PINK) (INCLS 18, 19) (W/RINGS) (ACDelco #8642613) ST1 (M30) 2005-2009 01
018 RING, LOW REV ACCUM PSTN INR FLUID SEAL (PART OF 17) (*KIT1, KIT5, KIT6) 2004-2009
019 RING, LOW REV ACCUM PSTN OTR FLUID SEAL (PART OF 17) (*KIT1, KIT5, KIT6) 2004-2009
020 08673041 HOUSING, 2-4 BAND SERVO 2ND APPL (.55) (ACDelco #8673041) ST1 (M30) 2005-2009 01
021 08642112 SEAL, 2-4 BAND SERVO 2ND APPL PSTN HSG (O RING) (*KIT1) (ACDelco #8642112) ST1 (M30) 2005-2009 01
022 24207758 ПРУЖИНА, 2-4 BAND SERVO PSTN (ACDelco #24207758) ST1 (M30) 2005-2009 03
023 08642107 WASHER, 2-4 BAND SERVO PIN (11.17 ID X 22.0 OD X 2.30 THK) (ACDelco #8642107) ST1 (M30) 2005-2009 03
024 09415640 RETAINER, SNAP RING BOWED EXT.FITS SHFT 7/16 PL (OUTPUT SHF) (ACDelco #9415640) 2004-2009 01
025 08642478 PISTON, 2-4 BAND SERVO 4TH APPLY (W/RING) (ACDelco #8642478) ST1 (M30) 2005-2009 01
026 08642480 RING, 2-4 BAND SERVO PSTN FLUID SEAL (*KIT1) (ACDelco #8642480) ST1 (M30) 2005-2009 03
027 08647351 SEAL, 2-4 BAND SERVO CVR (O RING) (PART OF 28) (*KIT1) (ACDelco #8647351) ST1 (M30) 2005-2009 01
028 08642979 COVER, 2-4 SERVO (W/SEAL) (INCLS 27) (INCLS RING) (4.241) (ACDelco #8642979) ST1 (M30) 2005-2009 01
029 24232065 RING, 2-4 BAND SERVO CVR RET (ACDelco #24232065) ST1 (M30) 2005-2009 01
030 24208660 SEAL, A/TRNS CASE EXTN (*KIT1) (ACDelco #24208660) ST1 (M30) 2005-2009 01
031 88935684 EXTENSION, TRFER CASE RR (INCLS РАЗДАТОЧНАЯ КОРОБКА RR BUSHING) T1 (NP4) 2005-2009 01
031 88935684 EXTENSION, TRFER CASE RR (INCLS РАЗДАТОЧНАЯ КОРОБКА RR BUSHING) T1 (NP8) 2005-2009 01
032 08680874 БОЛТ, A/TRNS CASE EXTN (M10X1.5X33.4) (4.265) ST1 2005-2009 06
033 08680027 BUSHING, PROP SHF FRT SLIP YOKE (INSIDE DIA 1.506-1.509) (PART OF TRANS CASE) (4.104) ST1 2004-2009 01
034 24232325 SEAL, PROP SHF FRT SLIP YOKE OIL (BOOTED, LIP OF METAL CASE IS UNPAINTED GRAY) (*KIT1) (ACDelco #24232325) T1 (LH6, M30) 2005-2008 01
034 24232325 SEAL, PROP SHF FRT SLIP YOKE OIL (BOOTED, LIP OF METAL CASE IS UNPAINTED GRAY) (*KIT1) (ACDelco #24232325) T1 (LL8, M30) 2005-2008 01
036 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (INCLS 37) (2-WAY MALE) (ACDelco #213-347) ST1 2005-2009 AR
036 12376520 ДАТЧИК, VEH SPD (SCREW IN WITH O-RING) (INCLS 37) (2-WAY MALE) (3.682) (ACDelco #213-347) ST1 2005-2009 AR
036 88864358 ДАТЧИК, VEH SPD (INCLS 37) (ALL MAKES) T155 (06) (LL8) 2004-2007 01
036 88864358 ДАТЧИК, VEH SPD (INCLS 37) (ALL MAKES) T155 (06) (LH6) 2005-2006 01
037 19133158 SEAL, VEH SPD SEN (O RING) (PART OF 36) (I.D. 20MM) (ACDelco #19133158) T1 (NP8) 2004-2009 01
037 19133158 SEAL, VEH SPD SEN (O RING) (PART OF 36) (I.D. 20MM) (ACDelco #19133158) T155 (NP4) 2005-2009 01
038 08628864 ORIFICE, 3RD ACCUM BL (6.4MM DIA) (NO DIMPLE) (*KIT8) (4.104) (ACDelco #8628864) ST1 (M30) 2005-2009 01
039 00444613 PLUG, HEX HD, 1/8-27 NPTF, STL (*KIT1) (ACDelco #444613) 2004-2009 01
040 08634400 VALVE, 3RD ACCUM BALL CHK (*KIT8) (ACDelco #8634400) ST1 (M30) 2005-2009 01
041 08654581 PIN, 2-4 BAND ANC (ACDelco #8654581) ST1 (M30) 2005-2009 01
042 08628732 VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (SINGLE ORIFICE) (TALL NARROW) (*KIT4, KIT8) (4.226) (ACDelco #8628732) ST1 (M30) 2005-2009 01
042 08663890 VALVE, A/TRNS FLUID/PUMP CVR BALL CHK (DOUBLE ORIFICE) (W/BALL) (*KIT4, KIT8) (ACDelco #8663890) ST1 (M30) 2005-2009 01
043 08628273 PIN, 3-4 ACCUM PSTN (4.226) (ACDelco #8628273) ST1 (M30) 2005-2009 01
044 PISTON, 3-4 ACCUM (*KIT6) 2004-2009
045 24206509 RING, 3-4 ACCUM PSTN FLUID SEAL (*KIT1, KIT6) (ACDelco #24206509) ST1 (M30) 2005-2009 01
046 08639074 ПРУЖИНА, 3-4 ACCUM PSTN (BLUE) (*KIT4) (ACDelco #8639074) ST1 (M30) 2005-2009 01
047 ПРОКЛАДКА, C/VLV BODY (*KIT1, KIT4) 2004-2009
048 24241782 PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24241782) ST1 (LL8, M30) 2004-2006 01
048 24241783 PLATE, C/VLV BODY SPCR (W/GSKT) (ACDelco #24241783) ST1 (LH6, M30) 2005-2005 01
049 24209144 FILTER, SHFT SOL VLV FLUID (ACDelco #24209144) ST1 (M30) 2004-2008 01
050 24209145 FILTER, PRESS CONT SOL VLV FLUID (ACDelco #24209145) ST1 (M30) 2004-2008 01
052 ПРОКЛАДКА, C/VLV BODY SPCR PLT (PLATE TO VALVE BDY) (*KIT1, KIT4) 2004-2009
053 08682792 COVER, A/TRNS CASE FLUID PASG (4.265) (ACDelco #8682792) ST1 (M30) 2005-2009 01
054 24219942 ПРУЖИНА, 1-2 ACCUM PSTN OTR (GREEN) (*KIT7) (ACDelco #24219942) ST1 (M30) 2004-2007 01
055 24206509 RING, 1-2 ACCUM PSTN FLUID SEAL (*KIT1, KIT6, KIT7) (ACDelco #24206509) ST1 (M30) 2005-2009 01
056 PISTON, 1-2 ACCUM (*KIT6, KIT7) 2004-2009
057 24219935 COVER, 1-2 ACCUM (INCLS PIN) (*KIT7) (ACDelco #24219935) ST1 (M30) 2005-2009 01
058 11506078 БОЛТ, HFH M6X1X65 9.8 PL (VLV BODY COVER) 2004-2009 01
059 11503870 БОЛТ, HEX M6X1X35 10.9 PC (ACUUM CVR TO CASE) (ACDelco #11503870) 2004-2009 01
060 19207771 VALVE, CONT (W/BODY VLV) (REMAN) ST1 (LH6, M30) 2005-2005 01
060 24224997 VALVE, CONT (W/BODY VLV) (ACDelco #24224997) ST1 (LL8, M30) 2004-2007 01
060 24224999 VALVE, CONT (W/BODY VLV) (ACDelco #24224999) ST1 (LH6, M30) 2005-2005 01
061 00104918 BALL, 1/4 DIA, CHROME STL (CHK VLV) (ACDelco #104918) 2004-2009 01
062 08680741 БОЛТ, VLV BODY (M6X1X54.4) (ACDelco #8680741) ST1 (M30) 2004-2008 03
063 08642247 DETENT, MAN SHFT (INCLS 901) (INCLS PIN) (ACDelco #8642247) ST1 (M30) 2005-2009 01
064 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (DTNT SPR TO VB) (ACDelco #11508687) 2004-2009 01
065 24213704 SEAL, A/TRNS WRG CONN (O RING) (PART OF 66) (2.559) (ACDelco #24213704) ST1 2005-2009 01
066 24234280 HARNESS, A/TRNS WRG (INCLS 65, 67) (NON-ISS) (W/TCC VALVE) (ACDelco #24234280) ST1 (LH6, M30) 2005-2005 01
066 24234280 HARNESS, A/TRNS WRG (INCLS 65, 67) (NON-ISS) (W/TCC VALVE) (ACDelco #24234280) ST1 (LL8, M30) 2005-2007 01
066 24234280 HARNESS, A/TRNS WRG (INCLS 65, 67) (NON-ISS) (W/TCC VALVE) (2.480) (ACDelco #24234280) ST1 (LH6, M30) 2005-2005 01
066 24234280 HARNESS, A/TRNS WRG (INCLS 65, 67) (NON-ISS) (W/TCC VALVE) (2.480) (ACDelco #24234280) ST1 (LL8, M30) 2005-2007 01
067 10471813 SEAL, TCC SOL VLV (O RING) (PART OF 66) (SMALL DIA) (OTR) (ACDelco #10471813) ST1 (M30) 2005-2009 01
068 11503870 БОЛТ, HEX M6X1X35 10.9 PC (TCC SOLVLV) (ACDelco #11503870) 2004-2009 02
069 24219581 SWITCH, A/TRNS FLUID PRESS MAN VLV POSN (INCLS TRANS FLUID TEMP (TFT) SENSOR) (ACDelco #24219581) ST1 (M30) 2004-2005 01
070 08680764 БОЛТ, A/TRNS FLUID PRESS MAN VLV POSN SW (M6X1X17.7) (ACDelco #8680764) ST1 (M30) 2004-2008 03
071 08685775 SEAL, A/TRNS FLUID FLTR (*KIT3) ST1 (LH6, M30) 2005-2009 01
071 08685775 SEAL, A/TRNS FLUID FLTR (*KIT3) ST1 (LL8, M30) 2005-2009 01
072 FILTER, A/TRNS FLUID (*KIT3) 2004-2009
073 08654799 ПРОКЛАДКА, A/TRNS FLUID PAN (PART OF 75) (*KIT3) (ACDelco #8654799) ST1 (M30) 2005-2009 01
074 29535617 MAGNET, A/TRNS FLUID PAN (PART OF 75) (4.105) (ACDelco #29535617) ST1 (M30) 2005-2009 01
075 24240207 PAN KIT, A/TRNS FLUID (INCLS 73, 74) (ACDelco #24240207) ST1 (M30) 2005-2008 01
076 24231519 БОЛТ, A/TRNS FLUID PAN (ACDelco #24231519) ST1 (M30) 2004-2009 16
077 08680764 БОЛТ, FLUID PASG CVR (SPACER SUPPORT PLATE) (M6X1X17.7) (4.265) (ACDelco #8680764) T1 (M30) 2005-2009 03
078 08620318 PLUG, PARK PAWL SHF HOLE (PART OF 79) (.38 DIA) (ACDelco #8620318) ST1 (M30) 2004-2007 01
079 08669911 PAWL KIT, PARK (INCLS 78, 81) (INST SHT, PAWL, PLUG SHF) (ACDelco #8669911) ST1 (M30) 2005-2009 01
080 08642193 ПРУЖИНА, PARK PAWL (ACDelco #8642193) ST1 (M30) 2005-2009 01
081 PAWL, PARK (PART OF 79) 2004-2009
082 08657163 SEAL, MAN SHFT SHF (PART OF 84) (*KIT1, KIT8) (ACDelco #8657163) ST1 (M30) 2005-2009 01
083 08642246 RETAINER, MAN SHFT SHF (ACDelco #8642246) ST1 (M30) 2004-2008 01
084 24235194 SHAFT KIT, MAN SHFT (INCLS 82) (128.2MM) (LONG) (INCLS SEAL) (ACDelco #24235194) ST1 (M30) 2005-2008 01
085 24227480 ACTUATOR, PARK PAWL (INCLS ACTUATOR, ROD SPRINGS) (ACDelco #24227480) ST1 (M30) 2004-2008 01
086 08667574 BRACKET, PARK PAWL ACTR (ACDelco #8667574) ST1 (M30) 2005-2009 01
087 11508687 БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (PARK LOCK BRACKET TO CASE) (ACDelco #11508687) 2004-2009 02
088 24222404 LEVER, MAN SHFT DTNT (ACDelco #24222404) ST1 (M30) 2005-2009 01
089 08680731 LINK, MAN VLV (*KIT1) (ACDelco #8680731) ST1 (M30) 2005-2009 01
090 10255857 ГАЙКА, HFH, 10X1.5, 6H THD, 9.8THK, 21.3 O.D., 10, PZOR (8.917) 2004-2009 01
091 00104918 BALL, 1/4 DIA, CHROME STL (NO. 10 CHECK BALL) (ACDelco #104918) 2004-2009 01
094 24233360 БОЛТ, T/CV HSG (M10X1.5X45) (TORX) (ACDelco #24233360) ST1 (M30) 2005-2009 08
095 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (*KIT8) (ACDelco #24233366) ST1 2005-2007 02
096 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (EXPANDING SPRING WIRE) (*KIT8) (ACDelco #24205103) ST1 2005-2009 04
097 24205899 PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) ST1 (M30) 2004-2005 01
098 24205900 COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) ST1 (M30) 2005-2009 01
099 08663707 ORIFICE, LUB FLUID (4.3MM DIA) (*KIT8) (ACDelco #8663707) ST1 (M30) 2005-2009 01
102 24206953 HOUSING, T/CV (ACDelco #24206953) ST1 (LS2, M30) 2005-2005 01
102 24206953 HOUSING, T/CV (ACDelco #24206953) ST1 (LH6, M30) 2005-2009 01
102 24220854 HOUSING, T/CV (ACDelco #24220854) ST1 (LL8, M30) 2004-2009 01
103 CASE, A/TRNS (*KIT8) 2004-2009
104 24220145 ПРУЖИНА, 1-2 ACCUM PSTN INR (LIGHT GREEN) (*KIT7) (ACDelco #24220145) ST1 (LL8, M30) 2004-2009 01
377 24230632 VALVE, PRESS CONT SOL (ACDelco #24230632) ST1 (M30) 2004-2009 01
900 08684426 PIN, 1-2 ACCUM PSTN (4.226) (ACDelco #8684426) ST1 (M30) 2005-2009 01
901 06261174 PIN, MAN SHFT DTNT RLR (PART OF 63) (4.311) (ACDelco #6261174) ST1 (M30) 2004-2008 01
902 ROLLER, MAN SHFT DTNT (*KIT1) 2004-2009
K01 24236378 GASKET KIT, A/TRNS SERV (INCLS 2, 5, 6, 18, 19, 21, 26, 27, 30, 34, 39, 45, 47, 52, 55, 82, 89) (W/PISTONS) (*1) (ACDelco #24236378) ST1 (M30) 2005-2009 01
K03 24208576 ФИЛЬТР, A/TRNS FLUID (INCLS 71-73) (ACDelco #24208576) (USED W/DEEP PAN 76.6MM) ST1 (M30) 2005-2009 01
K04 24221350 GASKET KIT, C/VLV BODY SPCR PLT (INCLS 42, 46, 47, 52) (ACDelco #24221350) ST1 (M30) 2005-2009 01
K05 24232073 RING KIT, 2-4 BAND SERVO 2ND APPL PSTN FLUID SEAL (INCLS 18, 19) (ACDelco #24232073) ST1 (M30) 2004-2009 01
K06 24221919 PISTON KIT, 1-2 3-4 ACCUM (INCLS 18, 19, 44, 45, 55, 56) (INCLS 1-2 3-4 ACCUM PSTN SEAL ASM) (ACDelco #24221919) ST1 (M30) 2005-2009 01
K07 24220142 ACCUMULATOR, 1-2 (INCLS 54-57, 104) (ACDelco #24220142) ST1 (LL8, M30) 2005-2007 01
K07 24220143 ACCUMULATOR, 1-2 (INCLS 54-57, 104) (ACDelco #24220143) ST1 (LH6, M30) 2005-2005 01
K08 24247300 CASE KIT, A/TRNS (INCLS 9, 11, 38, 40, 42, 82, 95, 96, 99, 103) (ACDelco #24247300) ST1 (M30) 2005-2007 01
