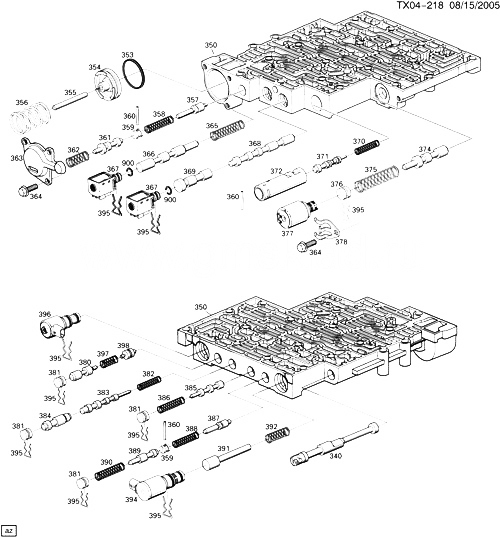

(TX04-218) - 2002-2009 ST АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M30) ЧАСТЬ 4 (4L60-E) КЛАПАН УПРАВЛЕНИЯ CHEVROLET TRAILBLAZER LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
340 24203484 VALVE, MAN (*KIT1) (4.265) (ACDelco #24203484) ST1 (M30) 2005-2009 01
350 BODY, C/VLV (*KIT1) 2002-2009
353 24206508 RING, FWD CLU ACCUM PSTN FLUID SEAL (*KIT1) (ACDelco #24206508) ST1 (M30) 2005-2009 01
354 24200126 PISTON, FWD CLU ACCUM (*KIT1) (ACDelco #24200126) ST1 (M30) 2002-2008 01
355 PIN, FWD CLU ACCUM PSTN (*KIT1) 2002-2009
356 24208765 ПРУЖИНА, FWD CLU ACCUM PSTN (*KIT1) (ACDelco #24208765) ST1 (M30) 2005-2009 01
357 VALVE, FWD CLU ABUSE (*KIT1) 2002-2009
358 ПРУЖИНА, FWD CLU ABUSE VLV (*KIT1) 2002-2009
359 PLUG, FWD CLU ABUSE VLV BORE (*KIT1) 2002-2009
360 08680765 PIN, FWD CLU ABUSE VLV BORE PLUG (*KIT1) (4.265) (ACDelco #8680765) ST1 (M30) 2002-2009 01
360 08680765 PIN, 1-2 ACCUM VLV BORE PLUG (*KIT1) (ACDelco #8680765) ST1 (M30) 2005-2009 01
360 08680765 PIN, REV ABUSE VLV BORE PLUG (*KIT1) (ACDelco #8680765) ST1 (M30) 2005-2009 01
361 VALVE, LOW OVERRUN (*KIT1) 2002-2009
362 ПРУЖИНА, LOW OVERRUN VLV (*KIT1) 2002-2009
363 24206338 COVER, FWD CLU ACCUM (W/SLOTS) (*KIT1) (ACDelco #24206338) ST1 (M30) 2005-2009 01
364 08680764 БОЛТ, FWD CLU ACCUM CVR (M6X1X17.7) (*KIT1) (4.265) (ACDelco #8680764) ST1 (M30) 2005-2009 03
364 08680764 БОЛТ, A/TRNS FLUID PRESS MAN VLV POSN SW (M6X1X17.7) (*KIT1) (ACDelco #8680764) ST1 (M30) 2002-2008 03
365 ПРУЖИНА, 1-2 SHFT VLV (*KIT1) 2002-2009
366 VALVE, 1-2 SHFT (*KIT1) 2002-2009
367 24230298 VALVE, 1-2, 3-4 SHFT SOL (INCLS 900) (INCLS SEAL) (*KIT1) (ACDelco #24230298) ST1 (M30) 2005-2009 01
367 24230298 VALVE, 2-3 SHFT SOL (INCLS 900) (INCLS SEAL) (*KIT1) (ACDelco #24230298) ST1 (M30) 2005-2009 01
368 VALVE, 2-3 SHUTTLE (*KIT1) 2002-2009
369 VALVE, 2-3 SHFT (*KIT1) 2002-2009
370 ПРУЖИНА, 1-2 ACCUM VLV (*KIT1) 2002-2009
371 VALVE, 1-2 ACCUM (*KIT1) 2002-2009
372 SLEEVE, 1-2 ACCUM VLV (*KIT1) 2002-2009
374 VALVE, ACTR FEED LIM (*KIT1) 2002-2009
375 ПРУЖИНА, ACTR FEED LIM VLV (*KIT1) 2002-2009
376 PLUG, TCC C/VLV BORE (*KIT1) 2002-2009
377 24230632 VALVE, PRESS CONT SOL (*KIT1) (ACDelco #24230632) ST1 (M30) 2004-2009 01
378 08682007 CLAMP, PRESS CONT SOL VLV (*KIT1) (ACDelco #8682007) ST1 (M30) 2005-2009 01
380 VALVE, TCC (*KIT1) 2002-2009
381 PLUG, TCC C/VLV BORE (*KIT1) 2002-2009
382 ПРУЖИНА, 4-3 SEQUENCE VLV (*KIT1) 2002-2009
383 VALVE, 4-3 SEQUENCE (*KIT1) 2002-2009
384 VALVE, 3-4 RLY (*KIT1) 2002-2009
385 VALVE, 3-4 SHFT (*KIT1) 2002-2009
386 ПРУЖИНА, 3-4 SHFT VLV (*KIT1) 2002-2009
387 VALVE, ABUSE (REV) (*KIT1) 2002-2009
388 ПРУЖИНА, ABUSE VLV (REV) (*KIT1) 2002-2009
389 VALVE, 3-2 DNSHFT (*KIT1) 2002-2009
390 ПРУЖИНА, 3-2 DNSHFT VLV (*KIT1) 2002-2009
391 VALVE, 3-2 CONT (*KIT1) 2002-2009
392 ПРУЖИНА, 3-2 C/VLV (*KIT1) 2002-2009
394 24212327 VALVE, 3-2 SHFT SOL (*KIT1) (4.122) (ACDelco #24212327) ST1 (M30) 2002-2008 01
395 08680781 RETAINER, 1-2-3-4 SHFT SOL VLV (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, 2-3 SHFT SOL VLV (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, 3-2 DNSHFT VLV BORE PLUG (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, 3-2 SHFT SOL VLV (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, 3-4 RLY VLV BORE PLUG (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, 3-4 SHFT VLV BORE PLUG (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, ACTR FEED LIM VLV BORE PLUG (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, TCC PWM SOL VLV (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
395 08680781 RETAINER, TCC SIG VLV BORE PLUG (*KIT1) (ACDelco #8680781) ST1 (M30) 2005-2009 01
396 24227792 VALVE, TCC PWM SOL (*KIT1) (ACDelco #24227792) ST1 (M30) 2005-2009 01
397 ПРУЖИНА, TCC C/VLV (*KIT1) 2002-2009
398 24227792 VALVE, TCC PWM SOL (*KIT1) (ACDelco #24227792) ST1 (M30) 2005-2009 01
900 10471813 SEAL, TCC SOL VLV (O RING) (PART OF 367) (SMALL DIA) (OTR) (*KIT1) (ACDelco #10471813) ST1 (M30) 2005-2009 01
K01 19207771 VALVE, CONT (W/BODY VLV) (REMAN) (INCLS 340, 350, 353-378, 380-392, 394-398, 900) ST1 (LH6, M30) 2005-2005 01
K01 24224997 VALVE, CONT (W/BODY VLV) (INCLS 340, 350, 353-378, 380-392, 394-398, 900) (ACDelco #24224997) ST1 (LL8, M30) 2003-2007 01
K01 24224999 VALVE, CONT (W/BODY VLV) (INCLS 340, 350, 353-378, 380-392, 394-398, 900) (ACDelco #24224999) ST1 (LH6, M30) 2005-2005 01
