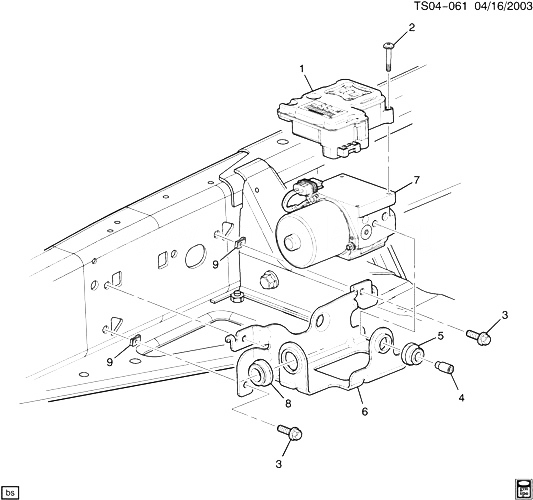

(TS04-061) - 2002-2005 ST155 МОДУЛЬ УПРАВЛЕНИЯ ТОРМОЗАМИ И КРЕПЛЕНИЕ CHEVROLET TRAILBLAZER LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15125070 MODULE, ELEK BRK CONT T1 (JF8) 2005-2005 01
002 12475229 БОЛТ, ELEK BRK CONT MDL CVR (M4X0.7X25 PAN HD) ST1 (JF8) 2002-2005 03
003 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (ELEK BRK CONT MDL) (ACDelco #11570082) 2002-2005 03
004 12473003 БОЛТ, BRK PRESS MOD VLV BRKT (M8X1.25) ST1 (JF8) 2002-2005 02
005 12473002 BUSHING, ELEK BRK CONT MDL BRKT (PART OF 6) (27.9MM O.D. - 10.8MM I.D.) T1 (JF8) 2002-2005 02
006 88935756 BRACKET, ELEK BRK CONT MDL (INCLS 5, 8) ST1 (JF8) 2003-2005 01
007 89027152 VALVE, BRK PRESS MOD (ACDelco #89027152) T1 (JF8) 2005-2005 01
008 12389626 BUSHING, ELEK BRK CONT MDL BRKT (PART OF 6) (34.7MM O.D. - 18.4MM I.D.) T1 (JF8) 2002-2005 01
009 ГАЙКА, ELEK BRK CONT MDL 2002-2005
