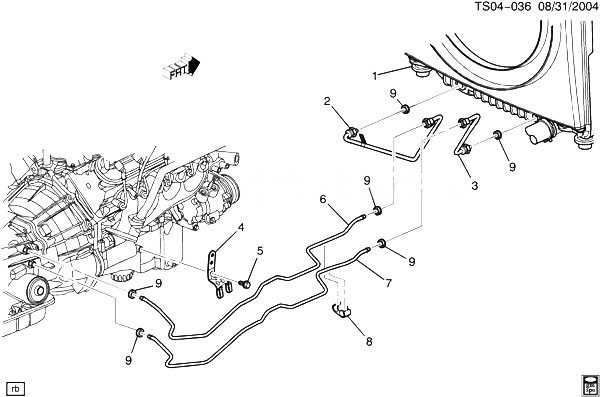

(TS04-036) - 2005 ST1(06-36) АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛЯНОГО РАДИАТОРА (LH6/5.3M) CHEVROLET TRAILBLAZER LT (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 RADIATOR, (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2003-2009
002 15817513 PIPE, TRANS FLUID CLR OTLT (FROM RADIATOR TO CONNECTOR) (INCLS 9) (ACDelco #15817513) ST1 (LH6, M30, CJ2, CJ3, DAY) 2005-2005 01
002 15817513 PIPE, TRANS FLUID CLR OTLT (FROM RADIATOR TO CONNECTOR) (INCLS 9) (ACDelco #15817513) ST1 (06) (LH6, M30, CJ2, CJ3, OKL) 2005-2006 01
003 15817499 PIPE, TRANS FLUID CLR INL (FROM RADIATOR TO CONN) (INCLS 9) (CODE UNK) (ACDelco #15817499) ST1 (LH6, M30, CJ2, CJ3) 2005-2005 01
004 15176225 CLIP, TRANS FLUID CLR PIPE (STEEL, HAS 2 PIPE HOLDERS) ST1 (LH6, LS2) 2005-2009 01
005 11509640 БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (TRANS FLUID CLR PIPE CLIP) 2003-2009 01
006 15817516 PIPE, TRANS FLUID CLR OTLT (FROM QUICK CONNECT TO TRANS) (INCLS 9) ST1 (06-36) (LH6, M30) 2005-2005 01
007 15817502 PIPE, TRANS FLUID CLR INL (FROM QUICK CONNECT TO TRANS) (INCLS 9) ST1 (06-36) (LH6, M30) 2005-2005 01
008 15199031 CLIP, TRANS FLUID CLR PIPE (LINE TO LINE) ST1 (06-36) (LH6, M30) 2005-2005 01
009 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 2, 3, 6, 7) (PLASTIC RETAINER) (ACDelco #15052228) ST1 2005-2009 AR
