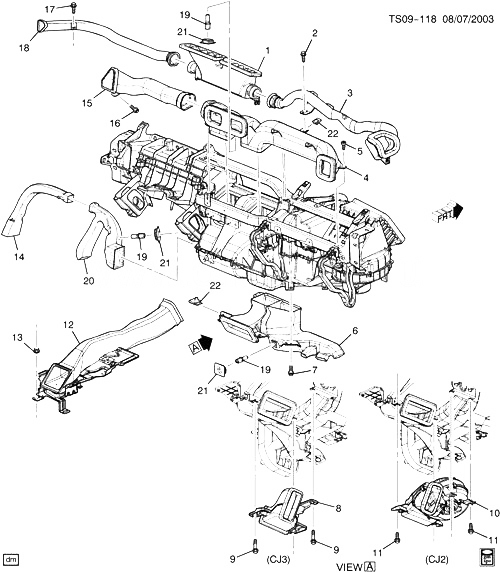

(TS09-118) - 2004-2009 ST155 СИСТЕМА РАСПРЕДЕЛЕНИЯ ВОЗДУХА (POWER ADJUSTABLE PEDAL JF4) CHEVROLET TRAILBLAZER LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15156020 NOZZLE, W/S DEFR ST1 2005-2009 01
002 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (SI WDO DEFG OTLT DUCT) (9.665) 2004-2009 03
003 15008743 DUCT, SI WDO DEFG OTLT (INCLS 22) ST1 2005-2009 01
004 15811789 DUCT, AIR DISTR (INCLS 21, 22) ST1 (CJ2) 2005-2009 01
004 15811790 DUCT, AIR DISTR (INCLS 21, 22) ST1 (06) (CJ3) 2005-2009 01
005 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AIR DISTR DUCT) (9.665) 2004-2009 04
006 15008739 DUCT, FLR AIR OTLT (INCLS 21, 22) (PASS SIDE) ST1 (CJ2) 2004-2009 01
006 15750902 DUCT, FLR AIR OTLT (INCLS 21, 22) (PASS SIDE) ST1 (CJ3, DAY, OKL) 2004-2009 01
007 11516619 БОЛТ, HFH, M4.2X1.41X30, 21 THD, 12.5 OD, 6010M, 7153M (FLR AIR OTLT DUCT) (8.977) 2004-2009 03
008 15156017 CONNECTOR, R/FLR AIR DUCT (A/C MDL TO FLR CNSL) ST1 2004-2007 01
009 11516619 БОЛТ, HFH, M4.2X1.41X30, 21 THD, 12.5 OD, 6010M, 7153M (R/FLR AIR DUCT CONN) (8.977) 2004-2009 03
010 15156043 DISTRIBUTOR, R/FLR AIR (W/BLO) (INCLS RESISTOR) ST1 (CJ2) 2004-2009 01
011 11516619 БОЛТ, HFH, M4.2X1.41X30, 21 THD, 12.5 OD, 6010M, 7153M (FLR RR AIR DISTR) (8.977) 2004-2009 04
012 CONSOLE, F/FLR LWR (СМ. ГРУППУ 16.000 КОНСОЛЬ/ПОЛ FOR DETAILED ILLUSTRATED VIEW) 2004-2009
013 11610157 ГАЙКА, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL) (10.701) 2004-2009 04
014 15127032 DUCT, FLR AIR OTLT (DRIVERS SIDE) ST1 (CJ2, CJ3, JF4) 2005-2009 01
015 15156021 DUCT, AIR DISTR ST1 (CJ2, CJ3) 2005-2009 01
016 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AIR DISTR DUCT) (9.665) 2004-2009 04
017 11589012 БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (SI WDO DEFG OTLT DUCT) (9.665) 2004-2009 03
018 15008742 DUCT, SI WDO DEFG OTLT (INCLS 22) ST1 2005-2009 01
019 12160947 ДАТЧИК, DUCT AIR TEMP (37.54MM) (ACDelco #15-5632) ST1 (CJ2) 2005-2009 04
020 15106132 DUCT, FLR AIR OTLT (INCLS 21) (DRIVER SIDE) ST1 (06-36) (CJ3, DAY, JF4) 2004-2005 01
020 15106132 DUCT, FLR AIR OTLT (INCLS 21) (DRIVER SIDE) ST1 (CJ3, JF4, OKL) 2004-2007 01
020 15106133 DUCT, FLR AIR OTLT (INCLS 21) (DRIVER SIDE) ST1 (CJ2, JF4) 2005-2009 01
021 15152429 RETAINER, AMB AIR TEMP SEN (PUSH IN) (PART OF 4, 6, 20) (HOLE LINER TYPE) ST1 (CJ2) 2005-2009 AR
022 11513599 ГАЙКА, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 3, 4, 6, 18) (ACDelco #11513599) 2004-2009 AR
