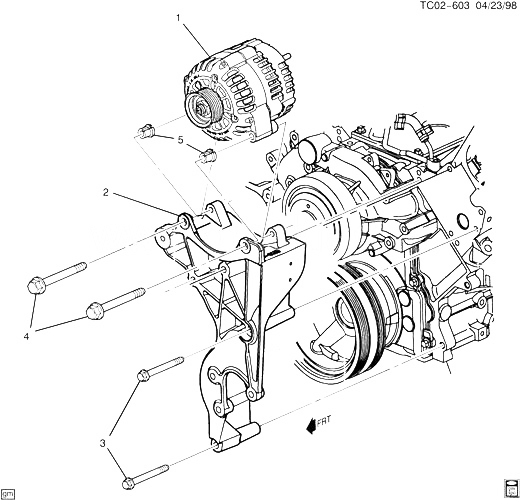

(TC02-603) - 2005-2009 ST КРЕПЛЕНИЕ ГЕНЕРАТОРА (LH6/5.3M, LS2/6.0H) CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15847291 ГЕНЕРАТОР, (USE T/W 97233352 PULLEY FOR BELT LINE-UP) (ACDelco #15847291) (DELCO SERIES DR44G, TYPE 100) ST1 (LH6) 2006-2006 01
002 12567922 BRACKET, GEN P/S PUMP (INCLS 5) (INCLS SPACER) ST1 (LH6) 2005-2009 01
003 11519214 БОЛТ, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN P/S PUMP BRKT) 2003-2009 02
004 11518637 БОЛТ, HFH M10X1.5X95, 26 THD, 22.3 OD, 9.8, 7114M, MACH, 7.5 MAT-PT (GEN) 2003-2009 04
005 12550090 SPACER, GEN P/S PUMP BRKT (PART OF 2) ST1 (LH6) 2005-2009 02
