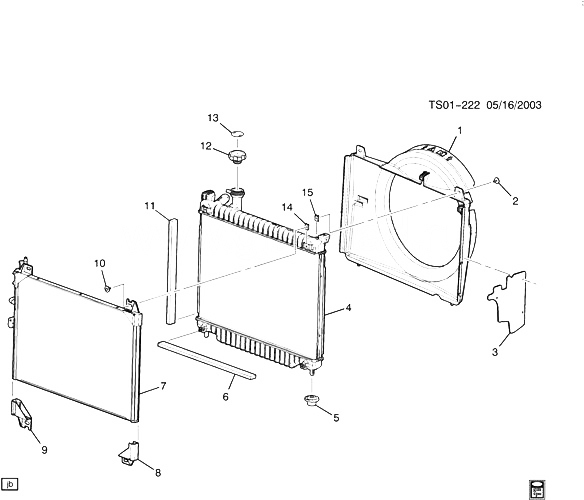

(TS01-222) - 2006-2009 ST(06) РАДИАТОР И СОПРЯЖЕННЫЕ ДЕТАЛИ CHEVROLET TRAILBLAZER EXT (4WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15170459 SHROUD, ENG COOL FAN ST1 (LL8, M30, CJ2, CJ3) 2005-2009 01
002 11561556 BOLT-HEX W/FL WA, M6X1X20, 9.05 THD, 24 OD, 9.8, GMW3200, W/ADHES GM6175M (ENG COOL FAN SHRD) 2002-2009 02
004 RADIATOR, (INCLS 14, 15) (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2002-2009
006 15162216 SEAL, A/C CNDSR (TOP/BOTTOM SEAL) (PART OF 7) (FOAM) ST1 (CJ2, CJ3) 2002-2007 02
007 89019255 CONDENSER, A/C (INCLS 6, 8, 9) (ACDelco #15-63656) ST1 (LL8, M30, CJ2, CJ3) 2005-2009 01
008 15162217 BRACKET, A/C CNDSR (PART OF 7) ST1 (CJ2, CJ3) 2005-2009 01
009 15162218 BRACKET, A/C CNDSR (PART OF 7) ST1 (CJ2, CJ3) 2005-2009 01
010 11561556 BOLT-HEX W/FL WA, M6X1X20, 9.05 THD, 24 OD, 9.8, GMW3200, W/ADHES GM6175M (A/C CNDSR) 2002-2009 02
011 15162215 SEAL, A/C CNDSR (UPPER/SIDE SEALS) ST1 (CJ2, CJ3) 2002-2007 02
012 15042975 CAP, RAD FIL (INCLS 13) (ACDelco #RC85) ST1 2005-2009 01
013 15063597 LABEL, RAD FIL CAP CAUTION (PART OF 12) (DOMESTIC) ST1 2005-2009 01
014 ГАЙКА, A/C CNDSR BR UPR (PART OF 4) 2006-2009
015 ГАЙКА, ENG COOL FAN SHRD (PART OF 4) 2006-2009
