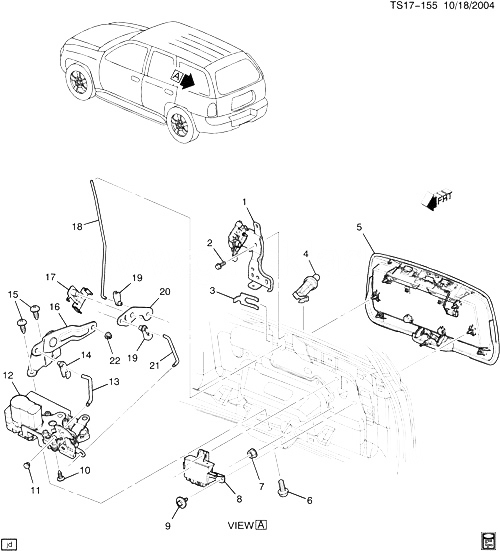

(TS17-155) - 2002-2009 ST1(06) АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 2 LOCK DETAIL CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15840460 LATCH, L/GATE WDO (INCLS AJAR SWITCH) ST1 (06) 2002-2009 01
002 11517484 BOLT-HEX, M6X1X20, 9 THD, 17 OD, 9.8, 6280M, MACH, P-PT (L/GATE WDO LAT) 2002-2009 03
003 15065664 RETAINER, L/GATE LK CYL ST1 2002-2009 01
004 CYLINDER, L/GATE LK (СМ. ГРУППУ 16.000 ЗАМОК/ДВЕРЬ БАГАЖНИКА FOR DETAILED ILLUSTRATED VIEW) 2002-2009
005 HANDLE, L/GATE O/S (W/RR LIC PLT HSG) (СМ. ГРУППУ 17.000 АРМАТУРА ДВЕРИ БАГАЖНИКА/ЧАСТЬ 3 FOR DETAILED ILLUSTRATED VIEW) (PAINT TO MATCH) (INCLS SEAL, STUDS AND PLUGS FOR RR LIC MTG) (17.198) 2002-2009
006 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (L/GATE LK) 2002-2009 03
007 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (L/GATE O/S HDL) 2002-2009 05
008 25846782 MODULE, RR BODY CONT (ACDelco #218-12763) ST1 (06) (AU0) 2002-2006 01
009 11517347 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9 THD, 24 O.D., P-PT, 9.8, SN-ZN (RR BODY CONT MDL) 2002-2009 03
010 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (L/GATE LK) 2002-2009 03
011 16633853 CLIP, L/GATE LKG ROD (YELLOW) (PLASTIC) (10.527) ST1 (06) 2002-2009 02
012 15110511 LOCK, L/GATE (W/ACTUATOR) ST1 (06) 2002-2009 01
013 15709682 ROD, L/GATE LKG (PART OF 16) ST1 (06) 2002-2009 01
014 12376705 RETAINER, L/GATE LKG ROD (PART OF 16) (GREEN) (ROD END, ANTI-RATTLE) (16.345) ST1 (06) 2002-2009 01
015 11609946 БОЛТ, L/GATE O/S HDL B/C (10.470) ST1 (06) 2005-2009 02
016 15813755 BELLCRANK, L/GATE O/S HDL (INCLS 13, 14, 22) ST1 (06) 2002-2009 01
017 RETAINER, L/GATE LKG ROD B/C (PART OF 20) 2002-2009
018 ROD, L/GATE LK CYL (PART OF 20) 2002-2009
019 12376705 RETAINER, L/GATE LKG ROD (PART OF 20) (GREEN) (ROD END, ANTI-RATTLE) (16.345) ST1 (06) 2002-2009 01
020 15134741 BELLCRANK, L/GATE LKG ROD (INCLS 17-19, 21) (ROD RET PART OF BELLCRANK) ST1 (06) 2002-2009 01
021 ROD, L/GATE LKG ROD B/C (PART OF 20) 2002-2009
022 16629856 RETAINER, L/GATE O/S HDL ROD (PART OF 16) (WHITE) (10.565) ST1 (06) 2002-2009 01
