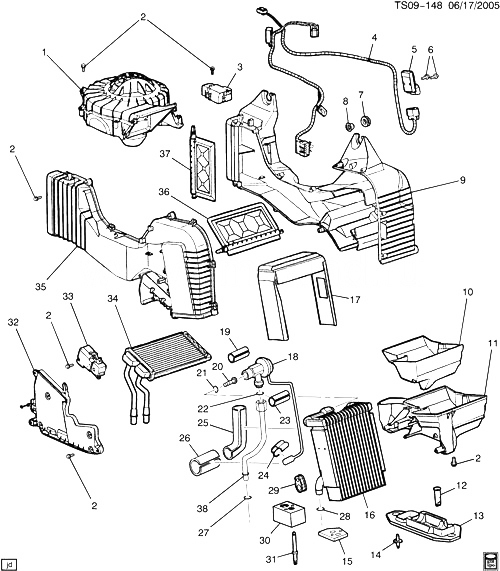

(TS09-148) - 2005-2006 ST158(06) ИСПАРИТЕЛЬ ВСПОМОГАТЕЛЬНОГО КОНДИЦИОНЕРА, ВЕНТИЛЯТОР, ОБОГРЕВАТЕЛЬ В СБОРЕ CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88892974 MOTOR, AUX BLO (ACDelco #15-80206) ST158 (06) 2004-2006 01
001 88892974 MOTOR, AUX BLO (8.855) (ACDelco #15-80206) ST158 (06) 2004-2006 01
002 88892988 БОЛТ, AUX A/C EVPR BLO CASE (PAN HEAD 10-16 HI/LO THREAD) ST158 (06) (CJ2, CJ3) 2004-2006 41
003 88892975 ACTUATOR, MODE VLV (AUX) (ACDelco #15-72811) ST158 (06) (CJ2, CJ3) 2004-2006 01
004 88892995 HARNESS, A/C CONT WRG ST158 (06) (CJ2, CJ3) 2004-2006 01
005 88892976 MODULE, BLO MOT CONT (AUX HTR) (ACDelco #15-72813) ST158 (06) (CJ2, CJ3) 2004-2006 01
006 88892989 БОЛТ, HTR A/C CONT ST158 (06) (CJ2, CJ3) 2004-2006 02
007 SPACER, A/C EVPR CASE (*KIT1) 2005-2006
008 SPACER, A/C EVPR CASE (*KIT1) 2005-2006
009 CASE, AUX HTR CORE (*KIT1) 2005-2006
010 INSULATOR, A/C EVPR MDL (PART OF 11) 2005-2006
011 89023467 CASE, AUX A/C EVPR (INCLS 10) ST158 (06) (CJ2, CJ3) 2004-2006 01
012 88986239 TUBE, A/C EVPR CASE DRN (9.211) (ACDelco #15-33364) ST158 (06) (CJ2, CJ3) 2004-2006 01
012 88986239 TUBE, A/C EVPR CASE DRN (ACDelco #15-33364) ST158 (06) (CJ2, CJ3) 2004-2006 01
013 89024921 SEAL, AUX A/C EVPR PIPE (INCLS 4 SEAL DESIGNS) (ACDelco #15-33261) ST158 (06) (CJ2, CJ3) 2004-2006 01
014 88892994 STUD, HTR A/C EVPR BLO MDL RET ST158 (06) (CJ2, CJ3) 2004-2006 02
015 88892985 SEAL, A/C EVPR TUBE (62.5 X 50.9 RECTANGLE) (ACDelco #15-31964) ST158 (06) (CJ2, CJ3) 2004-2006 01
016 89023466 EVAPORATOR KIT, AUX A/C (INCLS 17) (ACDelco #15-63249) ST158 (06) (CJ2, CJ3) 2005-2006 01
017 SEAL, AUX A/C EVPR (PART OF 16) 2005-2006
018 88892986 VALVE, AUX A/C EVPR THERMAL EXPN (INCLS 19-28, 38) (ACDelco #15-5900) ST158 (06) (CJ2, CJ3) 2004-2006 01
019 INSULATOR, A/C EVPR TXV (PART OF 18) 2005-2006
020 FILTER, A/C EVPR AIR (PART OF 18) 2005-2006
021 SEAL, A/C EVPR TXV (O RING) (PART OF 18) 2005-2006
022 SEAL, A/C EVPR TXV (O RING) (PART OF 18) 2005-2006
023 INSULATOR, A/C EVPR INL TUBE CLA (PART OF 18) 2005-2006
024 CLAMP, AUX A/C EVPR OTLT TUBE (PART OF 18) 2005-2006
025 INSULATOR, A/C EVPR TUBE (PART OF 18) 2005-2006
026 INSULATOR, AUX A/C EVPR TUBE (PART OF 18) 2005-2006
027 SEAL, AUX A/C EVPR INL TUBE (O RING) (PART OF 18) 2005-2006
028 SEAL, AUX A/C EVPR OTLT TUBE (O RING) (PART OF 18) 2005-2006
029 88986238 GROMMET, AUX A/C EVPR HOSE ST158 (06) (CJ2, CJ3) 2004-2006 01
030 BRACKET, AUX A/C EVPR TUBE (SERVICED WITH AUX HTR A/C EVPR BLO MODULE IN GROUP 09.169) 2005-2006
031 88892993 STUD, AUX A/C EVPR TUBE CLIP ST158 (06) (CJ2, CJ3) 2004-2006 02
032 89023464 COVER, AUX HTR ST158 (06) (CJ2, CJ3) 2005-2006 01
033 88892975 ACTUATOR, TEMP VLV (AUX) (ACDelco #15-72811) ST158 (06) (CJ2, CJ3) 2004-2006 01
034 89023339 CORE, AUX HTR (ACDelco #15-63083) (IF VEHICLE CONTAINS BLOCK FTG ALSO REQUIRES 89023336 CONVERSION KIT 89024921 SEAL) ST158 (06) (CJ2, CJ3) 2004-2006 01
035 CASE, AUX HTR CORE (*KIT1) 2005-2006
036 VALVE, TEMP (*KIT1) 2005-2006
037 VALVE, MODE (*KIT1) 2005-2006
038 TUBE, AUX A/C EVPR INL (PART OF 18) 2005-2006
K01 89023340 CASE, HTR A/C EVPR (INCLS 7-9, 35-37) ST158 (06) (CJ2, CJ3) 2004-2006 01
