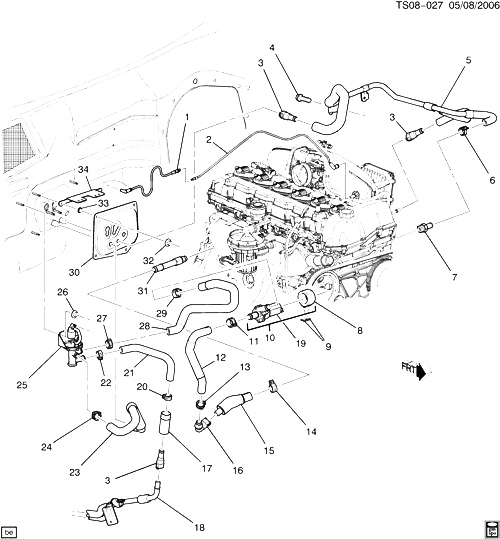

(TS08-027) - 2006 ST158(06) ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ ЧАСТЬ 1 ПЕРЕДНИЙ (LL8/4.2S) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15191084 HOSE, HTR WAT SHUTOFF VLV ACTR INL (VALVE SIDE) (*KIT1) ST158 (06) (CJ2, CJ3) 2005-2006 01
002 15183895 HOSE, HTR WAT SHUTOFF VLV ACTR INL ST158 (06) (LL8, CJ2, CJ3) 2005-2006 01
003 15119175 CONNECTOR, AUX HTR INL FRT HOSE (PART OF 5) (STRAIGHT) (*KIT1) ST1 (06) (LL8, CJ2, CJ3) 2006-2006 01
004 11519894 BOLT-HEX W/CON WA, M10X1.5X55, 42.3 THD, 20 OD, 10.9, 7114M, MACH, MAT-PT (TRANS) 2005-2006 11
005 15138451 HOSE, HTR OTLT (INCLS 3, 6) (CODE 8451, 9171, 5658) ST158 (06) (LL8, CJ2, CJ3) 2005-2006 01
006 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (PART OF 5) 2005-2006 01
007 12567908 FITTING, HTR OTLT HOSE ST1 (LL8) 2005-2006 01
008 BRACKET, AUX W/PMP (PART OF 10) 2006-2006
009 90335971 RETAINER, AUX W/PMP (4.037) ST158 (06) (CJ2, CJ3) 2005-2006 02
010 15225915 PUMP, HTR COOL (INCL BRKT) (INCLS 8, 19) ST158 (06) (LL8, CJ2, CJ3) 2005-2006 01
011 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 12) 2005-2006 01
012 15225914 HOSE, HTR WA SHUTOFF VLV INL (ENG TO WATER PMP) (INCLS 11, 13, 16) ST158 (06) (LL8, CJ2, CJ3) 2005-2006 01
013 01470030 CLAMP, WORM TYPE (11/16 TO 1 5/16) (PART OF 12) (ACDelco #1470030) 2005-2006 01
014 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 15) 2005-2006 01
015 15180574 HOSE, HTR INL (INCLS 14) (CODE 0574, 9924) ST158 (06) (LL8, CJ2, CJ3) 2005-2006 01
015 19130076 HOSE, HTR INL (INCLS 14) ST1 (LL8, CJ2, CJ3) 2005-2006 01
016 CONNECTOR, HTR INL HOSE (PART OF 12) 2006-2006
017 SLEEVE, HTR HOSE (*KIT1) 2006-2006
018 TUBE, AUX A/C EVPR (W/AUX HTR INL PIPE) (СМ. ГРУППУ 08.000 ШЛАНГИ И ТРУБКИ/ПОДОГРЕВАТЕЛЬ REAR FOR DETAILED ILLUSTRATED VIEW) 2005-2006
019 PUMP, HTR WAT AUX (PART OF 10) 2006-2006
020 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (AUX HTR INL FRT HOSE) (*KIT1) 2005-2006 01
021 HOSE, AUX HTR INL FRT (*KIT1) 2006-2006
022 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (AUX HTR INL FRT HOSE) (*KIT1) 2005-2006 01
023 HOSE, HTR INL (*KIT1) 2006-2006
024 11517133 CLAMP, SPRING, 22-26MM, 24 NOM., BLK (HTR WAT SHUTOFF VLV HOSE) (*KIT1) 2005-2006 01
025 15772294 VALVE, HTR WAT SHUTOFF (EXC HTR HOSES INL, OTLT SHUTOFF) (*KIT1) (ACDelco #15-5886) ST158 (06) (CJ2, CJ3) 2005-2006 01
026 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (HTR WAT SHUTOFF VLV) 2005-2006 01
027 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR WAT SHUTOFF VLV HOSE) (*KIT1) 2005-2006 01
028 HOSE, HTR WA SHUTOFF VLV INL (*KIT1) 2006-2006
029 11517136 CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (HTR WA SHUTOFF VLV INL HOSE) (*KIT1) 2005-2006 01
030 15125305 COVER, HTR BLO MDL DA ST1 (CJ2, CJ3) 2005-2006 01
031 12598077 FITTING, HTR INL HOSE (ACDelco #15-31230) ST1 (LL8) 2005-2006 01
032 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (HTR BLO MDL DA CVR) 2005-2006 04
033 ГАЙКА, HTR BLO MDL DA CVR 2006-2006
034 15249984 BRACKET, HTR WAT AUX PUMP ST158 (06) (CJ2, CJ3) 2005-2006 01
K01 15868284 VALVE, HTR WAT SHUTOFF (INCLS 1, 3, 17, 20-25, 27-29) (ACDelco #15-50690) ST158 (06) (LL8, CJ2, CJ3) 2006-2006 01
