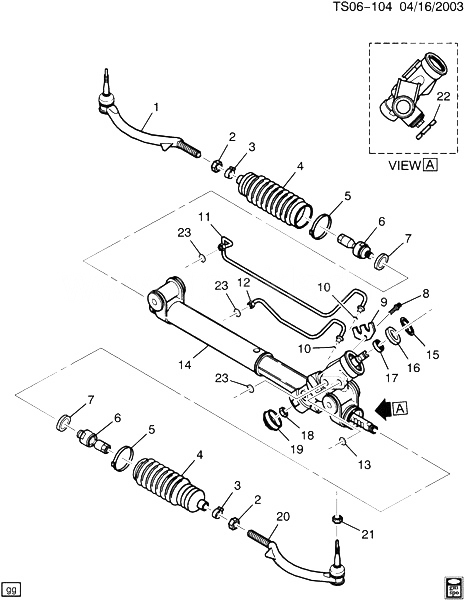

(TS06-104) - 2002-2009 ST1 РУЛЕВОЙ МЕХАНИЗМ В СБОРЕ CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 ROD, STRG LNKG OTR TIE (*KIT1) 2002-2009
003 26093031 CLAMP, S/GR BOOT (PART OF 14) (OTR) (*KIT2, KIT3) ST158 (N40) 2002-2006 02
004 BOOT, S/GR (PART OF 14) (*KIT2) 2002-2009
005 26079718 CLAMP, S/GR BOOT (PART OF 14) (62.7 DIA, 7.5 WIDTH) (INNER) (*KIT2, KIT3) ST158 (N40) 2002-2006 02
006 ROD, STRG LNKG INR TIE (PART OF 14) (*KIT3) 2002-2009
007 26088111 RING, S/GR SHF DPNR (PART OF 14) ST1 (N40) 2002-2009 02
008 26084815 БОЛТ, P/S GR INL OTLT PIPE RET (PART OF 14) ST1 2002-2009 01
008 26084815 БОЛТ, P/S GR INL OTLT PIPE RET (PART OF 14) (6.670) ST1 2002-2009 01
009 BRACKET, P/S GR INL OTLT PIPE CLIP (PART OF 14) 2002-2009
010 26081619 SEAL, S/GR PIPE (O RING) (PART OF 11, 12, 14) (6.00MM) ST158 (N40) 2006-2006 01
011 26100271 PIPE KIT, S/GR (INCLS 10) (PART OF 14) ST158 (N40) 2002-2006 01
012 26100270 PIPE KIT, S/GR (INCLS 10) (PART OF 14) ST158 (N40) 2002-2006 01
013 26080380 SEAL, P/S GR OTLT HOSE (PART OF 14) (9.04MM IDX4.10MM THK) (AT GEAR) ST158 2002-2006 02
014 88967181 GEAR KIT, STRG (REMAN) (INCLS 2-13, 15-19, 22, 23) (16MM) ST158 (06-36) (N40) 2004-2006 01
015 07828017 RING, S/GR STUB SHF SEAL RET (PART OF 14) (*KIT5) ST158 (N40) 2002-2006 01
016 SEAL, S/GR STUB SHF (PART OF 14) (*KIT5) 2002-2009
017 BEARING, S/GR STUB SHF (PART OF 14) (*KIT5) 2002-2009
018 ГАЙКА, LKG (PART OF 14) 2002-2009
019 07844439 COVER, S/GR HSG (PART OF 14) (6.824) ST158 (N40) 2002-2006 01
020 ROD, STRG LNKG OTR TIE (*KIT4) 2002-2009
021 11516074 ГАЙКА, STRG LNKG OTR TIE ROD (HEX M14X2, 13THK) (8.917) (W/M14X2 THREADS) ST1 (N40) 2005-2009 02
022 ГАЙКА, S/GR RACK ADJR (PART OF 14) 2002-2007
023 26080380 SEAL, P/S GR INL HOSE (O RING) (PART OF 14) (9.04MM IDX4.10MM THK) (AT GEAR) ST158 2002-2006 01
K01 26100287 ROD KIT, STRG LNKG OTR TIE (INCLS 1) (16MM THREADS ON GEAR END) ST1 (N40) 2005-2009 01
K02 26089593 BOOT KIT, S/GR (INCLS 3, 4, 5) (INCLUDES CLAMPS) ST1 2003-2009 02
K03 26100288 ROD KIT, STRG LNKG INR TIE (INCLS 2, 3, 5, 6) (16MM X 1.5) (W/GEARS STAMPED 15162147, 15185191, 15217081) ST1 (N40) 2003-2009 02
K03 26100288 ROD KIT, STRG LNKG INR TIE (INCLS 2, 3, 5, 6) (16MM X 1.5) (W/GEARS STAMPED 15162147, 15185191, 15217081) (6.230) ST1 (N40) 2005-2009 02
K04 26100286 ROD KIT, STRG LNKG OTR TIE (INCLS 20) (16MM THREADS ON GEAR END) ST1 (N40) 2005-2009 01
K05 26032824 BEARING KIT, S/GR STUB SHF (INCLS 15-17) (INCLS SEAL) ST158 (N40) 2006-2006 01
