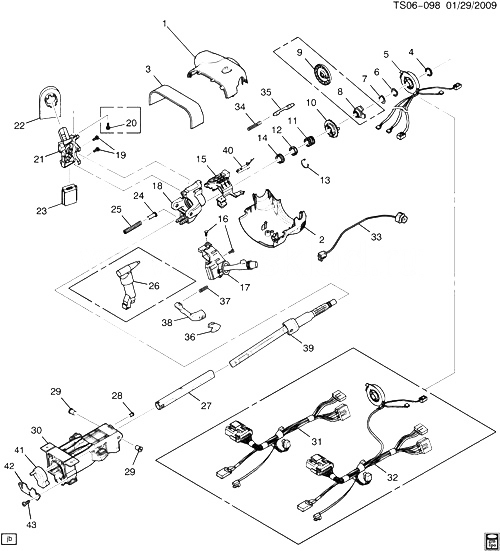

(TS06-098) - 2006-2009 ST(06) РУЛЕВАЯ КОЛОНКА (JF4) CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 26098277 COVER KIT, STRG COL TR (INCLS 2) (EBONY) (*KIT1) ST1 (JF4, M30, M70) (EXC BAE, NP7) 2006-2009 01
001 88963426 COVER KIT, STRG COL TR (INCLS 2) (CASHMERE) (*KIT1) ST1 (M30, JF4, K34, N30, 47I) (EXC BAE, NP7) 2006-2007 01
002 COVER, STRG COL LWR TR (PART OF 1) (*KIT1) 2006-2009
003 88963428 SHROUD, STRG COL (CASHMERE) (*KIT1) ST1 (47I) (EXC BAE) 2006-2007 01
004 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL COIL RET) (*KIT1) 2006-2009 01
005 88965345 COIL, STRG WHL INFL RST MDL (*KIT1) ST1 (M30, JF4, K34, N30, W49, 47I) (EXC BAE, NP7) 2006-2007 01
006 26011609 WASHER, STRG WHL INFL RST MDL COIL (*KIT1) (14.865) ST1 2006-2009 01
007 05694191 RING, STRG SHF LK PLT RET (*KIT1) (6.524) ST1 (M30) 2006-2009 01
008 26049186 PLATE, T/SIG SW CANC CAM POSN (W/SHIELD) (*KIT1) (6.521) ST1 2006-2009 01
010 26080344 CAM, T/SIG CANC (*KIT1) ST1 2006-2009 01
012 15231641 SEAT, STRG SHF UPR BRG RACE (*KIT1) ST1 (M30, M70) 2006-2009 01
013 12355066 STRAP, PLASTIC ADJ TIE (215MM LG) (WRG HARN) (*KIT1) (8.965) (ACDelco #16TS825) 2006-2009 01
014 26001827 BEARING KIT, STRG SHF UPR (STRG COL INR W/RACE) (*KIT1) ST1 2006-2009 01
015 26075818 BRACKET, IGN LK CYL CASE (*KIT1) ST1 (M30, M70) 2006-2006 01
017 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/O CRUISE CONTROL) (W/HAZARD СИГНАЛ) (*KIT1) (2.895) (ACDelco #D6298A) ST1 (EXC K34) 2006-2009 01
017 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/O CRUISE CONTROL) (W/HAZARD СИГНАЛ) (*KIT1) (ACDelco #D6298A) ST1 (EXC K34) 2006-2009 01
017 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/O CRUISE CONTROL) (W/HAZARD СИГНАЛ) (*KIT1) (2.895) (ACDelco #D6298A) ST1 (EXC K34) 2006-2009 01
017 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/CRUISE CONTROL) (INCLUDE HAZARD FLASH SWITCH) (*KIT1) (2.895) (ACDelco #D6299A) ST1 (K34) 2006-2009 01
017 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/CRUISE CONTROL) (INCLUDE HAZARD FLASH SWITCH) (*KIT1) (ACDelco #D6299A) ST1 (K34) 2006-2009 01
017 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/CRUISE CONTROL) (INCLUDE HAZARD FLASH SWITCH) (*KIT1) (2.895) (ACDelco #D6299A) ST1 (K34) 2006-2009 01
018 26087973 HOUSING, STRG COL (INCLS 35, 37, 38) (W/O STRG SHF, INCLS STRG COL INR RACE) (*KIT1, KIT2) ST1 (M30, M70) (EXC BAE) 2006-2007 01
019 26036497 БОЛТ, STRG COL LWR TR CVR (M5X.8X15) (*KIT1) (6.760) ST1 (EXC BAE) 2006-2007 02
020 26036496 БОЛТ, STRG COL UPR CVR (M4.55 TAP X15) (*KIT1) (2.188) ST1 (M30, M70) 2006-2009 01
021 88965342 CASE, IGN LK CYL (W/IGN LK ACTUATOR PASS LK SENSOR) (*KIT1) ST1 (M30, M70) 2006-2009 01
023 12450251 SWITCH, IGN START (W/LK CYL CONT SOL) (W/GEAR TEETH) (*KIT1) (ACDelco #12450251) ST1 2006-2009 01
024 26034561 GUIDE, STRG COL SPR (*KIT1) ST1 2006-2009 01
025 26065450 ПРУЖИНА, STRG COL TILT (*KIT1) ST1 2006-2009 01
026 26056147 LOCK, STRG WHL THEFT DTRNT (INCLS KEY REL SOL) (*KIT1) (DUE TO DESIGN CHANGE, WIRE HARNESS MAY BE TOO SHORT. REROUTE THE HARNESS TO MAKE IT WORK) ST1 2006-2009 01
027 19133765 SHAFT, LWR STRG (INCLS 14) (*KIT1) ST1 (M30) 2006-2009 01
028 93364414 BUMPER, STRG COL HSG (PART OF 30) (PINK) (UPR) (*KIT1) ST1 (M30) 2006-2009 01
029 26036521 PIN, STRG COL PIV (*KIT1) ST1 (M30) 2006-2009 02
030 19167126 SUPPORT, STRG COL HSG (INCLS 28) (*KIT1) ST1 2006-2009 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) ST1 (M30, JF4, JL4, K34, OKL, 27I, 28I, 48I) (EXC BAE, NP7, N30, STW) 2006-2006 01
031 26098189 HARNESS, STRG COL WRG (*KIT1) ST1 (M30, JF4, K34, OKL, 27I, 28I, 48I) (EXC BAE, NP7, STW) 2006-2006 01
033 26109365 SWITCH, BRK ACCEL PED ADJR (*KIT1) (4.626) ST1 (JF4) 2006-2009 01
033 26109365 SWITCH, BRK ACCEL PED ADJR (*KIT1) ST1 (JF4) 2006-2009 01
034 26034514 ПРУЖИНА, LK BOLT (43MM) ST1 2006-2009 01
036 26069514 LEVER, STRG COL TILT WHL REL (EXTERNAL) (*KIT1) ST1 2006-2009 01
037 05698410 ПРУЖИНА, STRG COL TILT LK REL LVR (PART OF 18, 38) (*KIT1) ST1 2006-2009 01
038 26090202 LEVER, STRG COL TILT LK REL (INCLS 37) (PART OF 18) (INTERNAL) (*KIT1) ST1 2006-2009 01
040 01999315 SWITCH, IGN KEY ALARM (W/PLUNGER) (*KIT1) (2.188) (ACDelco #D963A) ST1 2006-2009 01
041 19150081 ДАТЧИК, STRG WHL POSN (*KIT1) ST1 2006-2009 01
042 SUPPORT, STRG COL HSG (*KIT1) 2006-2009
043 БОЛТ, STRG COL HSG (*KIT1) 2006-2009
K01 88965511 COLUMN, STRG (INCLS 1-21, 23-31, 33, 35-43) ST1 (M30, K34, 47I) (EXC BAE, NP7) 2006-2007 01
