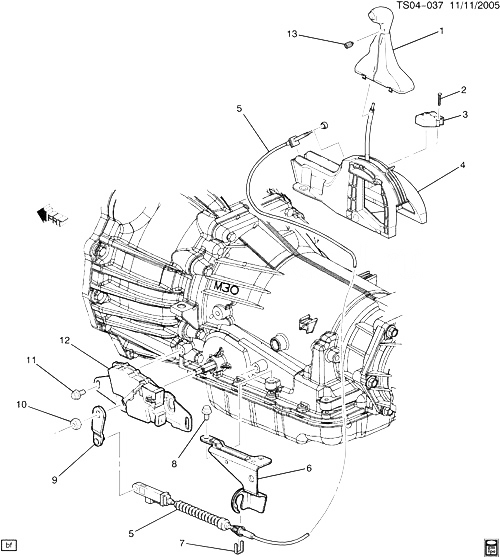

(TS04-037) - 2006-2009 ST(06) УПРАВЛЕНИЕ ПЕРЕКЛЮЧЕНИЕМ - КРЕПЛЕНИЕ/АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ CHEVROLET TRAILBLAZER EXT (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15897496 HANDLE, A/TRNS CONT LVR (INCLS 13) ST155, 158 (06) (X88) (EXC B4U, YC5, YC6) 2006-2006 01
001 15897497 HANDLE, A/TRNS CONT LVR (INCLS 13) ST155, 158 (B4U) 2006-2006 01
001 15897497 HANDLE, A/TRNS CONT LVR (INCLS 13) ST155, 158 (X88, YC5, YC6) (EXC B4U) 2006-2006 01
002 БОЛТ, A/TRNS SHFT LK CONT SOL (PART OF 4) 2006-2009
003 88967140 SOLENOID, A/TRNS SHFT LK CONT (PART OF 4) ST1 2005-2009 01
004 15922397 CONTROL, A/TRNS (INCLS 2-3) (INCLS SOLENOID) ST1 (06) 2006-2009 01
004 15922397 CONTROL, A/TRNS (INCLS 2-3) (INCLS SOLENOID) (4.004) ST1 (06) 2006-2009 01
005 15785087 CABLE, A/TRNS RANGE SEL LVR (ACDelco #15785087) ST1 (M30) 2005-2007 01
006 15200802 BRACKET, A/TRNS RANGE SEL LVR CBL (ACDelco #15200802) ST1 (M30) 2006-2009 01
007 10217245 RETAINER, A/TRNS RANGE SEL LVR CBL (U-SHAPE) ST1 (M30) 2005-2009 01
008 11509640 БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (A/TRNS RANGE SEL LVR CBL BRKT) 2002-2009 02
009 15082892 LEVER, A/TRNS RANGE SEL LVR EQLZR ST1 (M30) 2006-2007 01
010 11514603 ГАЙКА, M10X1.5 15MM SOCKET (A/TRNS RANGE SEL LVR EQLZR LVR) 2002-2009 01
011 11509640 БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (PARK/NEU POSN B/U LP SW) 2002-2009 02
012 24221125 SWITCH, PARK/NEU POSN B/U LP (12-PIN CONN) (4.054) (ACDelco #D2257C) ST1 (M30, M70) 2005-2009 01
012 24221125 SWITCH, PARK/NEU POSN B/U LP (12-PIN CONN) (ACDelco #D2257C) ST1 (M30, M70) 2006-2009 01
013 11519226 БОЛТ, A/TRNS CONT LVR KNOB (PART OF 1) (SET SCREW) (W/TAPER PT, T15 TORX, M6X1X10.2, 8 THD) ST1 2005-2009 01
