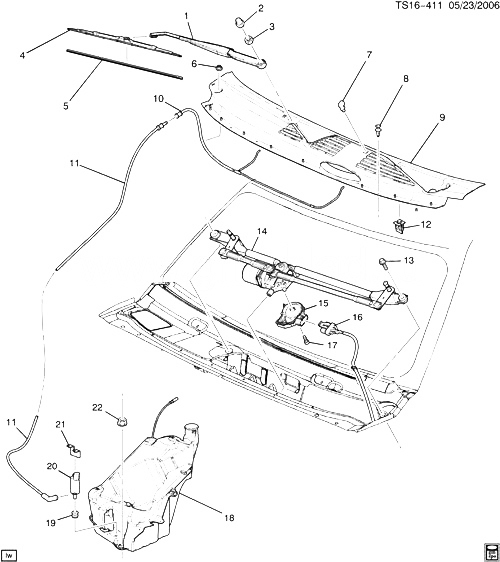

(TS16-411) - 2007-2009 ST(06) СИСТЕМА СТЕКЛООЧИСТИТЕЛЯ/ЛОБОВОЕ СТЕКЛО CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15214345 ARM, WSW ST1 (06) 2007-2009 02
002 10378967 CAP, WSW ARM FIN (INCLS NUT CAP) ST1 (06) 2007-2009 02
003 11609566 ГАЙКА, HEX, M10X1.5, 9 THK, GM510M (9) STL, GMW3044 (WSW ARM) 2007-2009 02
004 15214346 BLADE, WSW (INCLS 5) (22) ST1 (06) 2007-2009 02
005 12368668 WIPER, W/S (PART OF 4) (REFILL) ST1 (06) 2007-2009 02
006 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIR INL GRL PNL) 2007-2009 02
007 15878745 NOZZLE, WSWA (PART OF 9) (DOUBLE SPRAY TYPE) ST1 (06) 2007-2009 02
008 21075686 RETAINER, PUSH PIN W/SEAL, FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL (AIR INL GRL PNL) 2007-2009 03
009 25843112 PANEL, AIR INL GRL (INCLS 7, 10, 12) (W/FOAM SEAL) ST1 (06) 2007-2009 01
010 HOSE, WSW ARM NOZ (PART OF 9) 2007-2009
011 15160736 HOSE, WSWA PUMP (PART OF 18) (PART OF HOUSING ASM-A/CL) ST1 2007-2009 01
012 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 9) 2007-2009 02
013 11517492 БОЛТ, HEX W/CON WA, M6X1X30, 18.11 THD, 24 OD, 9.8, 6280M, MACH, P-PT (WSW SYS MDL) 2007-2009 02
014 15214343 MODULE, WSW SYS (INCLS 15, 17) (INCLS MOTOR COVER KIT) ST1 (06) 2007-2009 01
015 19120931 COVER KIT, WSW MOT (USE W/2003 AND UP MODULES ONLY, W/CIRC BD) (PART OF 14) (ACDelco #19120931) ST1 2007-2009 01
016 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) 2007-2009
017 БОЛТ, WSW MOT BRKT (PART OF 14) 2007-2009
018 CONTAINER, WSWA SOLV (W/PUMP) (СМ. ГРУППУ 16.000 ЕМКОСТЬ/СТЕКЛООЧИСТИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) (INCLS 11, 19-21) 2007-2009
019 22039457 GROMMET, WSWA PUMP (PART OF 18) (18MM) (10.153) ST1 2007-2009 AR
020 10386722 PUMP, WSWA (PART OF 18) (ACDelco #10386722) ST1 2007-2009 01
021 BRACKET, WSWA PUMP (PART OF 18) 2007-2009
022 11561630 ГАЙКА, A/CL (8 X 1.25) (13MM SOCKET) (8.016) ST1 (06) 2007-2009 02
