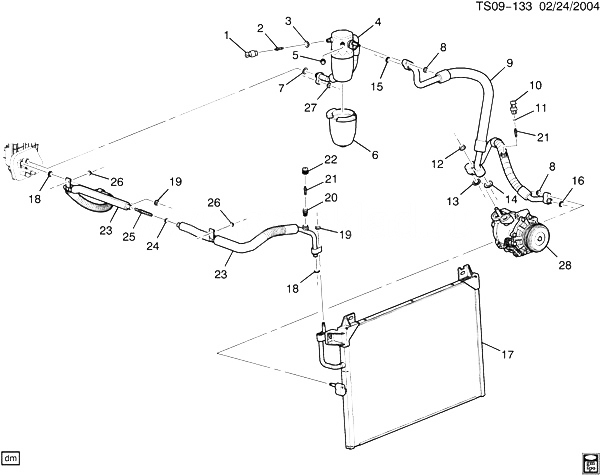

(TS09-133) - 2006-2009 ST155 СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА (LH6/5.3M,LS2/6.0H) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89040362 SWITCH, A/C CYCLING (INCLS SEAL) (PART OF 4) (ACDelco #15-50156) ST1 (CJ2, CJ3) 2005-2009 01
001 89040362 SWITCH, A/C CYCLING (INCLS SEAL) (PART OF 4) (9.172) (ACDelco #15-50156) ST1 (CJ2, CJ3) 2005-2009 01
002 03041827 CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 4) (ACDelco #15-1119) ST1 2005-2009 AR
003 52450548 SEAL O-RING (5/PKG) (.35 ID X .072 THICK (PART OF 4) (8.927) (ACDelco #15-30570) 2004-2009 01
004 15883410 ACCUMULATOR, A/C (INCLS 1-3, 5-7) (ACDelco #15-10644) ST155 (CJ2, CJ3) 2004-2009 01
005 CAP, A/C REFRIG SERV VLV FTG (PART OF 4) 2006-2009
006 INSULATOR, A/C ACCUM (PART OF 4) 2006-2009
007 52474373 SEAL, A/C CMPR CNDSR HOSE (19MM OD X 11MM ID) (PART OF 4) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST1 2004-2009 01
008 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) 2004-2009 02
010 13502758 ДАТЧИК, A/C REFRIG PRESS (PART OF 9) (ACDelco #15-51257) ST1 2006-2009 01
010 13502759 ДАТЧИК, A/C REFRIG PRESS (PART OF 9) (ACDelco #15-51258) ST1 2006-2009 01
011 03093509 O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (PART OF 9) (ACDelco #3093509) 2004-2009 01
012 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/C CMPR CNDSR HOSE) (2.383) 2004-2009 01
013 02724577 SEAL, A/C ACCUM FTG O RING (PART OF 9) (28MM OD X 15.5MM ID) (INCLS 2 SEALS) (ACDelco #15-2722) ST1 2004-2009 01
014 89019243 SEAL, A/C CMPR CNDSR HOSE (27.9MM OD X 15.5MM ID) (PART OF 9) (ACDelco #15-33897) ST1 2004-2009 01
015 52474373 SEAL, A/C CMPR CNDSR HOSE (19MM OD X 11MM ID) (PART OF 9) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST1 2004-2009 01
016 03093509 O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (PART OF 9) (ACDelco #3093509) 2004-2009 02
017 CONDENSER, A/C (СМ. ГРУППУ 09.000 КОНДЕНСАТОР КОНДИЦИОНЕРА FOR DETAILED ILLUSTRATED VIEW) 2004-2009
018 52474373 SEAL, A/C EVPR TUBE (PART OF 23) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST155 (CJ2, CJ3) 2007-2009 02
019 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) 2004-2009 02
020 52458184 VALVE, A/C REFRIG SERV (INCLS O-RINGS, CORE, FEMALE FITTING SEAL, M12X1.5 THD) (PART OF 23) (ACDelco #15-5438) ST1 2004-2009 01
021 03041827 CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 9, 23) (ACDelco #15-1119) ST1 2005-2009 AR
022 CAP, A/C EVPR TUBE (PART OF 23) 2006-2009
023 15883408 TUBE, A/C EVPR (INCLS 18, 20-22, 24, 25) (ACDelco #15883408) ST155 (CJ2, CJ3) 2005-2009 01
024 03094214 O-RING, ID .426X.070 THK, MATERIAL-NEOPRENE (PART OF 23) (ACDelco #15-3614) 2004-2009 01
025 03033879 ORIFICE, A/C EVPR TUBE (PART OF 23) (.072 DIAMETER) (ACDelco #15-5151) ST155 (CJ2, CJ3) 2005-2009 01
026 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (A/C EVPR TUBE CLIP) 2004-2009 02
027 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C ACCUM TUBE) (8.915) (ACDelco #11514596) 2004-2009 01
028 COMPRESSOR, A/C (СМ. ГРУППУ 09.000 A/C COMPRESSOR В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2004-2009
