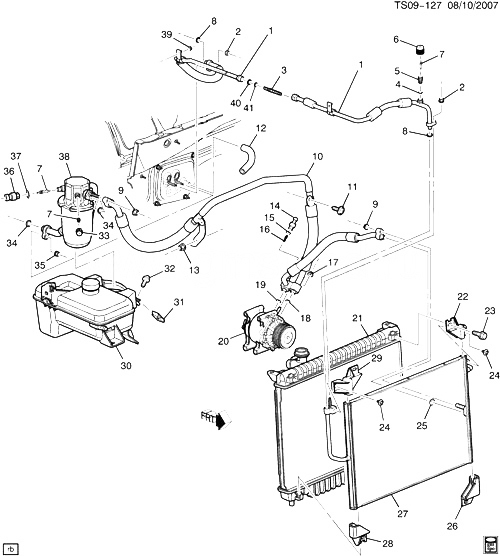

(TS09-127) - 2003-2009 ST155(06) СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА (LL8/4.2S) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15883408 TUBE, A/C EVPR (INCLS 4-8, 40, 41) (ACDelco #15883408) ST155 (CJ2, CJ3) 2005-2009 01
002 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR TUBE) (8.915) (ACDelco #11514596) 2003-2009 02
003 03033879 ORIFICE, A/C EVPR TUBE (INCLS 41) (PART OF 1) (.072 DIAMETER) (ACDelco #15-5151) ST155 (CJ2, CJ3) 2005-2009 01
004 SEAL, A/C REFRIG SERV VLV (O RING) (PART OF 1, 5) 2003-2009
005 52458184 VALVE, A/C REFRIG SERV (INCLS O-RINGS, CORE, FEMALE FITTING SEAL, M12X1.5 THD) (INCLS 4, 7) (PART OF 1) (ACDelco #15-5438) ST1 2003-2009 01
006 CAP, A/C EVPR TUBE (PART OF 1) 2003-2009
007 03041827 CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 1, 5, 38) (ACDelco #15-1119) ST1 2005-2009 AR
008 52474373 SEAL, A/C EVPR TUBE (PART OF 1) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST155 (CJ2, CJ3) 2007-2009 02
009 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) 2003-2009 02
010 25841573 HOSE, A/C CMPR CNDSR (INCLS 14-16, 18, 19, 34) (ACDelco #15-32468) ST155 (LL8, CJ2, CJ3) 2005-2009 01
011 11516589 SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (A/C CMPR CNDSR HOSE) 2003-2009 01
012 15118044 HOSE, A/C EVPR BLO MDL DRN ST1 (CJ2, CJ3) 2005-2009 01
013 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (A/C CMPR CNDSR HOSE) 2003-2009 01
014 13502758 ДАТЧИК, A/C REFRIG PRESS (PART OF 10) (ACDelco #15-51257) ST1 2006-2009 01
014 13502759 ДАТЧИК, A/C REFRIG PRESS (PART OF 10) (ACDelco #15-51258) ST1 2006-2009 01
015 03093509 O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (PART OF 10) (ACDelco #3093509) 2003-2009 01
016 03041827 CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 10) (ACDelco #15-1119) ST1 2005-2009 AR
017 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/C CMPR CNDSR HOSE) (2.383) 2003-2009 01
018 89019243 SEAL, A/C CMPR CNDSR HOSE (27.9MM OD X 15.5MM ID) (PART OF 10) (ACDelco #15-33897) ST1 2003-2009 01
019 02724577 SEAL, A/C ACCUM FTG O RING (PART OF 10) (28MM OD X 15.5MM ID) (INCLS 2 SEALS) (ACDelco #15-2722) ST1 2005-2009 01
020 25825341 COMPRESSOR, A/C (СМ. ГРУППУ 09.000 КОМПРЕССОР КОНДИЦИОНЕРА В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-21731) ST1 (LL8, CJ2, CJ3) 2008-2009 01
021 15196385 RADIATOR, (CORE SIZE 27IN X 18 1/8IN X 7/8IN, CODE YEA, CAX, TRANS OIL CLR) (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) (LESS DRAIN COCK) (ACDelco #21505) ST1 (LL8, M30, CJ2, CJ3) 2005-2009 01
022 89018782 BRACKET, A/C CNDSR UPR (PART OF 27) ST1 (LL8, M30, CJ2, CJ3) 2003-2009 01
023 11517347 БОЛТ, HEX HD, W/FL WA, M6X1X20, 9 THD, 24 O.D., P-PT, 9.8, SN-ZN (A/C CNDSR) 2003-2009 02
024 БОЛТ, A/C CNDSR (PART OF 27) 2003-2009
025 52474373 SEAL, A/C CMPR CNDSR HOSE (19MM OD X 11MM ID) (PART OF 10) (METAL/RUBBER) (19MM OD X 11MM ID, 1/2 IN DIA) (ACDelco #15-31055) ST1 2003-2009 01
026 15162217 BRACKET, A/C CNDSR (PART OF 27) ST1 (CJ2, CJ3) 2005-2009 01
027 89019255 CONDENSER, A/C (INCLS 22, 24, 26, 28, 29) (ACDelco #15-63656) ST1 (LL8, M30, CJ2, CJ3) 2005-2009 01
028 15162218 BRACKET, A/C CNDSR (PART OF 27) ST1 (CJ2, CJ3) 2005-2009 01
029 89018783 BRACKET, A/C CNDSR UPR (PART OF 27) ST1 (LL8, M30, CJ2, CJ3) 2003-2009 01
030 25780737 RESERVOIR, COOL RCVY (СМ. ГРУППУ 01.000 ШЛАНГИ РАДИАТОРА FOR DETAILED ILLUSTRATED VIEW) ST1 2003-2009 01
031 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (COOL RCVY RSVR) 2003-2009 01
032 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (COOL RCVY RSVR) (ACDelco #11570082) 2003-2009 01
033 CAP, A/C REFRIG LOW PRESS SERV VLV (PART OF 38) 2003-2009
034 02724966 SEAL, A/C CMPR CNDSR HOSE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 10, 38) (FOR NON-CANADIAN ORDERS) (ACDelco #15-31101) ST1 (CJ2, CJ3) 2005-2009 01
035 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C ACCUM TUBE) (8.915) (ACDelco #11514596) 2003-2009 01
036 89040362 SWITCH, A/C CYCLING (INCLS SEAL) (PART OF 38) (ACDelco #15-50156) ST1 (CJ2, CJ3) 2005-2009 01
036 89040362 SWITCH, A/C CYCLING (INCLS SEAL) (PART OF 38) (9.172) (ACDelco #15-50156) ST1 (CJ2, CJ3) 2005-2009 01
037 52450548 SEAL O-RING (5/PKG) (.35 ID X .072 THICK (PART OF 38) (8.927) (ACDelco #15-30570) 2003-2009 01
038 15883410 ACCUMULATOR, A/C (INCLS 7, 33, 34, 36, 37) (ACDelco #15-10644) ST155 (CJ2, CJ3) 2003-2009 01
039 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (A/C EVPR TUBE CLIP) 2003-2009 02
040 03094214 O-RING, ID .426X.070 THK, MATERIAL-NEOPRENE (PART OF 1) (ACDelco #15-3614) 2003-2009 01
041 SEAL, A/C EVPR TUBE (PART OF 1, 3) 2003-2009
