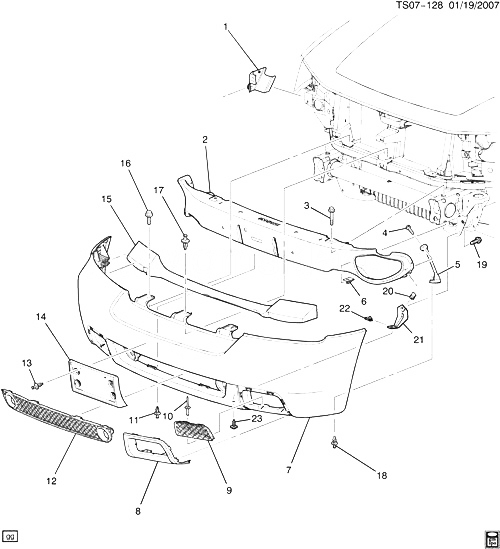

(TS07-128) - 2006-2009 ST155(06) ПЕРЕДНИЙ БАМПЕР (CHEVROLET X88, SS B4U) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15147253 BRACKET, FRT BPR FASCIA ST1 (06) 2006-2009 01
001 15147254 BRACKET, FRT BPR FASCIA ST1 (06) 2006-2009 01
002 15174444 БАМПЕР, ПЕРЕДНИЙ IMP ST1 (06) 2006-2009 01
003 11518393 БОЛТ, HFH W/CON WA, M14X2X180, 41 THD, 31 OD, 10.9, 7114M, MACH, MAT P-PT (FRT BPR IMP BAR) 2006-2009 02
004 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FRT BPR FASCIA BR) 2006-2009 02
005 21994090 BRACE, FRT BPR FASCIA ST1 (06) (B4U, X88) 2006-2009 01
005 21994091 BRACE, FRT BPR FASCIA ST1 (06) (B4U, X88) 2006-2009 01
006 11518395 ГАЙКА, FRT BPR IMP BAR ST1 2006-2009 02
007 19120215 FASCIA, FRT BPR (PAINT TO MATCH) ST1 (B4U, T96, X88, ZY1) 2006-2009 01
008 15135187 INSERT, FRT BPR LWR FASCIA TR ST1 (B4U, X88) 2006-2009 01
008 15135188 INSERT, FRT BPR LWR FASCIA TR ST1 (B4U, X88) 2006-2009 01
009 15135189 GRILLE, FRT BPR LWR FASCIA TR INS ST1 (B4U, X88) 2006-2009 01
009 15135190 GRILLE, FRT BPR LWR FASCIA TR INS ST1 (B4U, X88) 2006-2009 01
010 11516807 RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (FRT BPR FASCIA) 2006-2009 04
011 15056810 RETAINER, FRT BPR FASCIA (PUSH IN) (TO IMP BAR) (18.8MM) ST1 (06) (X88, Y99, Z88, Z89) 2008-2009 04
012 15135191 GRILLE, FRT BPR LWR FASCIA CTR ST1 (B4U, X88) 2006-2009 01
013 15993201 RETAINER, FRT LIC PLT BRKT (PART OF 14) (FOR 9.3MM DIA HOLE) (NYLON) (17.505) ST155 2006-2009 04
014 15032014 ATTACHMENT KIT, LIC PLT (INCLS 13) (INCLS BRKT, RETAINERS INSTRUCTION) ST1 (06) (VK3, X88, Z88) (EXC VJ1) 2006-2009 01
014 15032015 ATTACHMENT KIT, LIC PLT (INCLS 13) (INCLS FT BRKT) ST1 (VJ1) (EXPORT) 2006-2009 01
014 15032015 ATTACHMENT KIT, LIC PLT (INCLS 13) (INCLS FT BRKT) ST1 (VL4) (EXC G67, VJ1) 2006-2009 01
015 19120214 SPACER, FRT BPR FASCIA (POLYETHYLENE FOAM) ST1 (X88, T96) (EXC T84, T85) 2006-2009 01
016 11589039 БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (HDLP RAD GRL MT PNL) 2006-2009 06
017 10077283 RETAINER, FRT BPR FASCIA (PUSH IN) (SINGLE HEADED) (PUSH IN RIVET TYPE) ST1 (06) (X88, Z88, Z89) 2008-2009 01
018 14103461 RETAINER, FRT BPR FASCIA BR (PUSH IN) (FASCIA TO BRACE) (CTR) ST1 (06) 2006-2009 02
019 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FRT BPR FASCIA BRKT) (ACDelco #11570082) 2006-2009 02
020 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (PART OF 21) 2006-2009 02
021 15837586 BRACKET, FRT BPR FASCIA LWR (INCLS 20, 22) ST1 (B4U, T96, X88, ZY1) 2006-2009 02
022 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 21) 2006-2009 02
023 11570498 БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (FRT BPR FASCIA BRKT) 2006-2009 02
