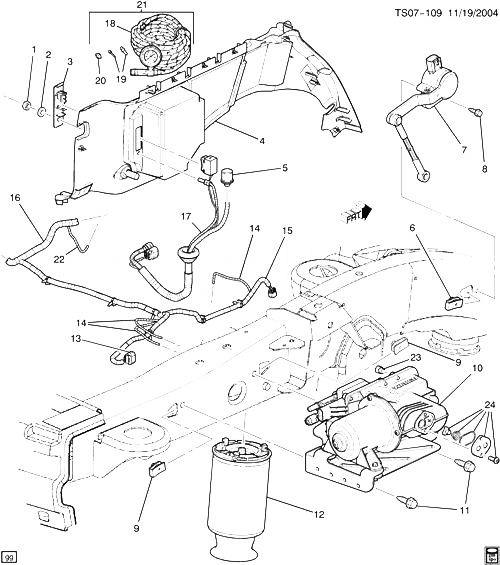

(TS07-109) - 2009 ST155 СИСТЕМА УПРАВЛЕНИЯ УРОВНЕМ ПОДВЕСКИ (G67)(1ST DES) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15031939 ГАЙКА, INFLR AIR SW (POA OF TOOL KIT) (HEX 1/2X32) (7.465) ST1 (G67) 2005-2009 01
002 11609679 WASHER, FLAT, M8 (INFLR AIR SW) 2002-2009 01
003 15052031 BEZEL, INFLR AIR SW ST1 (G67) 2005-2009 01
004 PANEL, BODY SI LWR TR (СМ. ГРУППУ 16.000 TRIM/INTERIOR-BODY SIDE FOR DETAILED ILLUSTRATED VIEW) 2002-2009
005 88892654 FILTER, AUTO LVL CONT AIR CMPR (PART OF 17) ST155 (G67) 2002-2009 01
006 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (RR AIR SPR LVL SEN) 2002-2009 04
007 15125534 ДАТЧИК, RR AIR SPR LVL ST1 (ZQ8) 2008-2009 01
007 25999461 ДАТЧИК, RR AIR SPR LVL ST1 (G67, ZW7) 2008-2009 01
007 25999462 ДАТЧИК, RR AIR SPR LVL ST1 (G67, ZW7) 2008-2009 01
008 11569736 БОЛТ, RR AIR SPR LVL SEN (M6X1X30) (W/RETAINER) ST1 (G67) 2005-2009 02
009 11516149 ГАЙКА, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (RR AIR SPR CMPR) 2002-2009 02
010 25978169 COMPRESSOR, RR AIR SPR (INCLS 23, 24) (USE T/W 25978170) ST1 (G67) 2009-2009 01
011 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR AIR SPR CMPR) (ACDelco #11570082) 2002-2009 02
012 25815604 ПРУЖИНА, RR AIR ST1 (8XK, 9XK) 2007-2009 02
014 88987246 TUBE, AUTO LVL CONT AIR CMPR (PART OF 16) (USE T/W 88892653 FITTING) ST155 2005-2009 01
015 15306156 CONNECTOR, SEN-ELEK SUSP POSN (OVAL) (PART OF 16) (BLACK) (2-WAY FEMALE) (W/LEADS) (3.682) (ACDelco #PT1315) ST1 2002-2009 02
016 HARNESS, CHAS RR WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ШАССИ FOR DETAILED ILLUSTRATED VIEW) (INCLS 13-15, 22) 2002-2009
017 15296435 SWITCH, INFLR AIR (INCLS 5) ST155 (G67) 2002-2009 01
018 HOSE, INFLR (W/GAGE) (PART OF 21) 2009-2009
019 NEEDLE, INFLR HOSE (PART OF 21) 2009-2009
020 CHUCK, INFLR HOSE (PART OF 21) 2009-2009
021 10433823 TOOL KIT, ACSRY (INCLS 18-20) (INCLS BAG, HOSE, CHUCK, NEEDLE, NOZZLE) ST1 2005-2009 01
022 88987245 TUBE, AUTO LVL CONT AIR CMPR (PART OF 16) (USE T/W 88892653 FITTING) ST155 2005-2009 01
023 88892653 FITTING, AUTO LVL CONT AIR CMPR TUBE (PART OF 10) ST155 (G67) 2002-2009 AR
024 COMPRESSOR KIT, AIR (PART OF 10) 2003-2009
