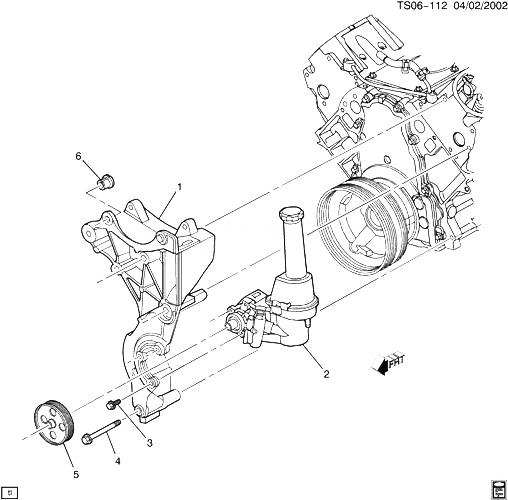

(TS06-112) - 2005-2009 ST НАСОС РУЛЕВОГО УПРАВЛЕНИЯ - КРЕПЛЕНИЕ (LH6/5.3M, LS2/6.0H) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12554030 BRACKET, GEN P/S PUMP (INCLS 6) (INCLS SPACER) (2.277) ST1 (LH6) 2009-2009 01
001 12567922 BRACKET, GEN P/S PUMP (INCLS 6) (INCLS SPACER) ST1 (LH6) 2005-2009 01
002 PUMP, P/S (СМ. ГРУППУ 06.000 РУЛЕВОЙ НАСОС В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2003-2009
003 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (P/S PUMP) 2003-2009 03
004 11519214 БОЛТ, HFH M10X1.5X115, 30 MM THD, 22.3 OD, 9.8, 7114M, MAT POINT (GEN P/S PUMP BRKT) 2003-2009 04
005 12569456 PULLEY, P/S PUMP ST1 (LH6) 2005-2009 01
006 12550090 SPACER, GEN P/S PUMP BRKT (PART OF 1) ST1 (LH6) 2005-2009 02
006 12550090 SPACER, GEN P/S PUMP BRKT (PART OF 1) (2.277) ST1 (LH6) 2005-2009 02
