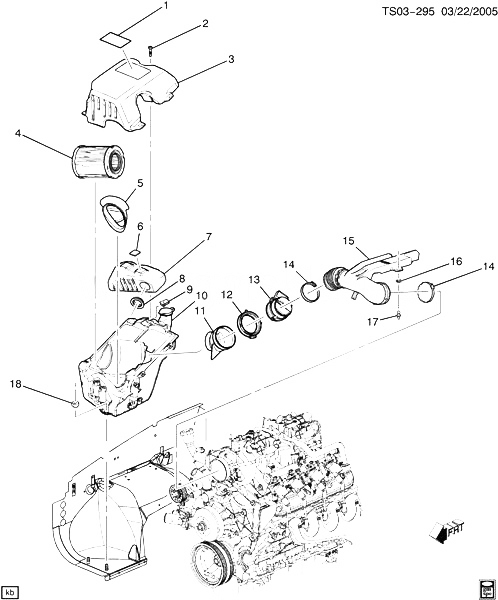

(TS03-295) - 2006-2009 ST(06) СИСТЕМА ВПУСКА ВОЗДУХА (LH6/5.3M) CHEVROLET TRAILBLAZER (4WD) 2009

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15103173 LABEL, A/C REFRIG WRNG (PART OF 3) (ENGLISH/FRENCH) (MUST HAVE VIN# WHEN ORDERING) ST1 2005-2009 01
002 15045901 БОЛТ, A/CL HSG (PART OF 3) ST1 (LH6) 2005-2009 04
003 15832647 HOUSING, A/CL UPR (INCLS 1, 2) (INCLS HOUSING, BOLT, LABEL) ST1 (LH6) 2006-2009 01
004 15036141 ЭЛЕМЕНТ, ВОЗДУШНЫЙ ФИЛЬТР (ACDelco #15036141) ST1 (LH6) 2005-2009 01
005 88983029 DUCT, A/CL INL ST1 (LH6, CE4) 2005-2009 01
006 15763604 INSULATOR, A/CL HSG (16.065) ST1 (LH6) 2005-2009 04
007 88983027 RESONATOR, FRT INT AIR DUCT ST1 (LH6) 2005-2009 01
008 88983028 SEAL, A/CL RESO DUCT ST1 (LH6) 2005-2009 01
009 11516372 ГАЙКА, U-TYPE, M5X1, MULTI THD, 2.0-5.0 PNL THK, PZ (WSWA SOLV CNTNR) 2005-2009 04
010 CONTAINER, WSWA SOLV (W/PUMP) (СМ. ГРУППУ 16.000 ЕМКОСТЬ/СТЕКЛООЧИСТИТЕЛЬ FOR DETAILED ILLUSTRATED VIEW) 2005-2009
011 88983026 ADAPTER, A/CL SNORKEL ST1 (LH6) 2005-2009 01
012 25171042 ADAPTER, MASS AIRFLOW SEN INL ST1 (LH6) 2005-2009 01
013 15904068 ДАТЧИК, MASS AIRFLOW (INCLS AIR TEMP SENSOR) (ACDelco #213-4160) ST1 (LH6) 2005-2009 01
014 CLAMP, A/CL OTLT DUCT (PART OF 15) 2006-2009
015 15281860 DUCT, A/CL OTLT (W/RESO) (INCLS 14, 16) (INCL INSULATOR) ST1 (LH6) 2007-2009 01
016 25346092 INSULATOR, A/CL HSG (PART OF 15) (3.270) ST1 (06-36) (LH6) 2005-2009 01
017 11609404 БОЛТ, A/CL OTLT DUCT (M6X1X9.5) (HEX, 8 DIA BALL STYLE) (7.477) ST1 (LH6) 2009-2009 01
018 11514596 ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/CL) (8.915) (ACDelco #11514596) 2005-2009 02
