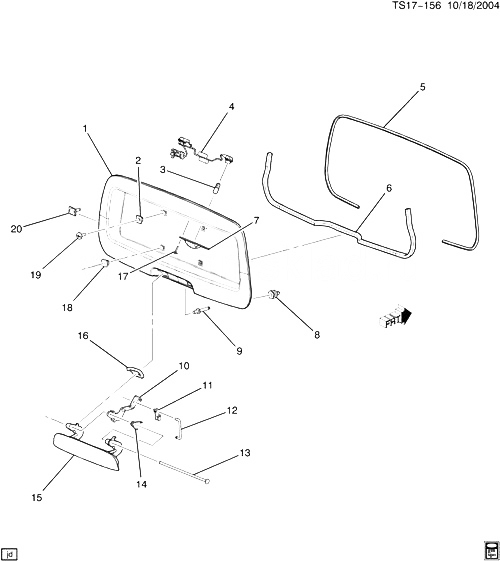

(TS17-156) - 2005-2009 ST1(06) АРМАТУРА ДВЕРИ БАГАЖНИКА ЧАСТЬ 3 (CHEVROLET X88, G.M.C. Z88) CHEVROLET TRAILBLAZER (4WD) 2008

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88980652 POCKET, RR LIC PLT (INCLS 2, 6, 8-10, 13, 14, 18, 20) (PAINT TO MATCH) ST1 (06) (X88, Z88, Z89) 2005-2008 01
002 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (PART OF 1) 2002-2009 02
003 01999382 BULB, (RR LIC PLT LP) (ACDelco #W5WLL) (LONGER LIFE) 2002-2009 02
004 HARNESS, RR LIC PLT LP WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ДВЕРИ БАГАЖНИКА FOR DETAILED ILLUSTRATED VIEW) 2002-2009
005 19177141 SEAL, L/GATE O/S PULL HDL ST1 (06) (X88) 2008-2009 01
006 SEAL, RR LIC PLT PKT (PART OF 1) 2005-2009
007 15000046 LAMP, RR LIC PLT ST1 2005-2009 02
008 11519032 RETAINER, PUSH IN, 19.5X28.4X1.8, FITS HOLE 9.1, ACETAL, BLK (PART OF 1) 2002-2009 02
009 STUD, RR LIC PLT PKT (PART OF 1) 2005-2009
010 BRACKET, RR LIC PLT PKT (PART OF 1, 15) 2005-2009
011 12376705 RETAINER, L/GATE LKG ROD (PART OF 15) (GREEN) (ROD END, ANTI-RATTLE) (16.345) ST1 (06) 2002-2009 01
012 ROD, L/GATE O/S HDL (PART OF 15) 2005-2009
013 PIN, L/GATE GDE SLIDE (BODY SI) (PART OF 1, 15) 2005-2009
014 ПРУЖИНА, L/GATE GDE SLIDE (BODY SI) (PART OF 1, 15) 2005-2009
015 88980651 HANDLE KIT, L/GATE O/S (INCLS 10-14) (PAINT TO MATCH) ST1 (06) (X88) 2005-2009 01
015 88980651 HANDLE KIT, L/GATE O/S (INCLS 10-14) (PAINT TO MATCH) ST1 (06) (TGK, X88, 01U) 2008-2009 01
016 88980653 SEAL, L/GATE O/S PULL HDL (BLACK) (1 X 1.75 INCHES) (TO SEAL HOLES IN CAVITY BEHIND HANDLE) (17.204) ST1 (06) (TGK, X88, 01U) 2008-2009 01
016 88980653 SEAL, L/GATE O/S PULL HDL (BLACK) (1 X 1.75 INCHES) (TO SEAL HOLES IN CAVITY BEHIND HANDLE) (17.204) ST1 (06) (X88, 41U) 2008-2009 01
017 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR LIC PLT LP) 2002-2009 04
018 PLUG, RR LIC PLT HSG HOLE (PART OF 1) 2005-2009
019 09423101 SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (RR LIC PLT) 2002-2009 02
020 25651470 STUD, RR LIC PLT (PART OF 1) (M6X1X24.5MM) (W/14.7X19.7MM CLIP) (2.483) ST1 2005-2009 04
